HamiltonStar 16 Channel Aspiration Error

KarlCahill · July 7, 2025, 1:12pm

Hello! Ive tested the Pyalbrobot for the first time last week, first of all what an awesome tool to be able to use! Thanks alot for developing this!

I stumbled upon a problem with the aspirate function. I have a Hamilton Star with 16 individual channels to aspirate from. I checked each individual channel with the “use_channels” command [0-15]. I can pick up tips without a problem for each channel, however the aspiration for last two cahnnels [14,15] gives the error:

pylabrobot.liquid_handling.backends.hamilton.STAR_backend.STARFirmwareError: {‘Master’: CommandSyntaxError(‘Parameter out of range’)}, C0ASid0010er01/32

The third last channel [13] does not seem to be working with the aspirate function either, however this does not give a direct error but a timeout response.

I will post the script below i used to test the different channels. perhaps i missed some argument or need a special configuration for the 16 channel setup?

==== Code ====

import asyncio
from pylabrobot.resources import (
    TIP_CAR_480_A00,
    PLT_CAR_L5AC_A00,
    Cor_96_wellplate_360ul_Fb,
    Tube_CAR_32_A00,
    HTF,
    Tube
)

from pylabrobot.resources.coordinate import Coordinate
from pylabrobot.liquid_handling import LiquidHandler
from pylabrobot.liquid_handling.backends import STARBackend
from pylabrobot.resources.hamilton import HamiltonSTARDeck

async def main():
    deck = HamiltonSTARDeck(num_rails=54, size_x=1215,size_y=465,size_z=195)
    lh = LiquidHandler(backend=STARBackend(), deck=deck)
    await lh.setup()

    tip_car = TIP_CAR_480_A00(name="tip carrier")
    tip_car[0] = HTF(name="tips_01")
    lh.deck.assign_child_resource(tip_car, rails=42)  # rail 42 exists on HamiltonSTARDeck

    plt_car = PLT_CAR_L5AC_A00(name="plate carrier")
    plt_car[0] = Cor_96_wellplate_360ul_Fb(name="plate_01")
    lh.deck.assign_child_resource(plt_car, rails=7)

    tube_car = Tube_CAR_32_A00(name="serum tube carrier")

    for i in range(32):
        tube_car[i] = Tube(
            name=f"tube_{i + 1:02}",  # zero-padded: tube_01, tube_02, ..., tube_32
            size_x=13,
            size_y=13,
            size_z=90,
            max_volume=2000,
            material_z_thickness=1.5
        )

    lh.deck.assign_child_resource(tube_car, rails=35)

    print(lh.summary())

    tiprack = lh.deck.get_resource("tips_01")
    await lh.pick_up_tips(tiprack["G1","H1"],use_channels=[6,7])
    print("tip location: ",tiprack.get_absolute_location())

    tube_1 = lh.deck.get_resource("tube_01")
    tube_2 = lh.deck.get_resource("tube_02")

    await lh.aspirate(
        resources=[tube_2, tube_1],
        use_channels=[6, 7],
        vols=[20, 20],
        lld_mode=[STARBackend.LLDMode.GAMMA, STARBackend.LLDMode.GAMMA],
        flow_rates=[25, 25],
        surface_following_distance=[4, 4]
    )

    plate = lh.deck.get_resource("plate_01")
    await lh.dispense(
        resources=plate["G1","H1"],
        vols=[20, 20],
        use_channels=[6, 7],
        offsets=[Coordinate(0, 0, 5), Coordinate(0, 0, 5)]
    )


    await lh.return_tips()
    await lh.stop()
    print("Script completed successfully")

if __name__ == "__main__":
    asyncio.run(main())

rickwierenga · July 7, 2025, 6:27pm

welcome to the forum!

what is most likely the case is that the channels can’t physically reach the front of the robot. with 16 channels, there isn’t full random access due to the other channels being in the way

can you verify channels 14 and 15 work on different tubes, somewhere in the middle of the robot?

that is weird. could you share a full firmware log?

KarlCahill · July 7, 2025, 6:46pm

Hi Rick, thanks for your reply!

The strange thing is the positions are quite reachable, the tip channels 14,15 are the outermost tips, tip channels further in can even reach the outermost aspiration / dispense positions.

I also tested the aspiration and dispense with the last three channels that have been giving me trouble 13,14,15 in the Venus software where they work fine.

Is each pipetting channel restricted by the software somewhere that is incorrectly configured in this case?

Let me get back to you with the log on the channel 13 that gave a response time error when I’m back in the lab tomorrow.

rickwierenga · July 7, 2025, 9:03pm

that is interesting. could you also send me the trc file? i am curious about how their firmware command differs from ours (dm is fine if you need privacy)

to confirm: you are using the same aspiration parameters for all channels right? like exact same call, except use_channels is different right?

KarlCahill · July 8, 2025, 8:17am

Hi Rick, thanks again for looking into this!

Im not sure how to run the full firmware log correctly. i initally got an attribution error when trying to run it as described in the link you provided. I managed to locate it under pylabrobot.pylabrobot.io. The start and stop_capture() did work, however only the version was writen. i think only lines 34-39 in the “capture.py” was executed. this was the output to the JSON file:

{
“version”: “0.1.6”,
“commands”:
}

I have made a script to try and debug this aspiration. All variables remain the same, i only change the integer in the “use_channels” argument. ill provide the script and the print logs thereoff below. To summeriye, channel 0-12 work fine, printlogs look similar, channel 13 gives a timeout response error, channel 14,15 gives an parameter our of range error.

=== script ===

import asyncio
import pylabrobot.pylabrobot.io as plr
from pylabrobot.resources import (
    TIP_CAR_480_A00,
    PLT_CAR_L5AC_A00,
    Cor_96_wellplate_360ul_Fb,
    HTF,
)
from pylabrobot.liquid_handling import LiquidHandler
from pylabrobot.liquid_handling.backends import STARBackend
from pylabrobot.resources.hamilton import HamiltonSTARDeck

async def main():
    deck = HamiltonSTARDeck(num_rails=54, size_x=1215, size_y=465, size_z=195)
    backend = STARBackend()
    lh = LiquidHandler(backend=backend, deck=deck)
    await lh.setup()

    # print debug info and commands sent
    orig_aspirate = backend.aspirate
    async def debug_aspirate(*args, **kwargs):
        ops = kwargs["ops"]
        use_channels = kwargs["use_channels"]
        x_positions, y_positions, channels_involved = backend._ops_to_fw_positions(ops, use_channels)

        print("\n DEBUG ASPIRATE")
        print(f"  use_channels:      {use_channels}")
        print(f"  tip_pattern:       {channels_involved}")
        print(f"  x_positions (mm):  {x_positions}")
        print(f"  y_positions (mm):  {y_positions}")
        print(f"  volumes (tenths):  {[round(op.volume * 10) for op in ops]}")

        # Try catching exceptions
        try:
            return await orig_aspirate(*args, **kwargs)
        except Exception as e:
            print(f" ERROR during aspirate with channels {use_channels}: {e}")
            raise

    backend.aspirate = debug_aspirate

    # Setup carriers and resources
    tip_car = TIP_CAR_480_A00("tip_car")
    tip_car[0] = HTF("tips_01")
    lh.deck.assign_child_resource(tip_car, rails=42)

    plt_car = PLT_CAR_L5AC_A00("plate_car")
    plt_car[0] = Cor_96_wellplate_360ul_Fb("plate_01")
    lh.deck.assign_child_resource(plt_car, rails=7)

    print(lh.summary())
    test_channels = [0]
    # Test all channels 0 through 15 individually to isolate failure
    for test_channel in test_channels:
        print(f"\n=== Testing channel {test_channel} ===")
        tiprack = lh.deck.get_resource("tips_01")
        try:
            validation_file = "16_channel_validation.json"
            plr.start_capture(validation_file)
            await lh.pick_up_tips(tiprack["A1"], use_channels=[test_channel])

            plate = lh.deck.get_resource("plate_01")
            await lh.aspirate(
                plate["A4"],
                use_channels=[test_channel],
                vols=[10]
            )

            await lh.dispense(
                plate["A5"],
                vols=[10],
                use_channels=[test_channel],
            )

            await lh.return_tips()

            print(f" Channel {test_channel} aspirate/dispense succeeded")
            plr.stop_capture()

        except Exception as e:
            print(f" Channel {test_channel} failed with error:\n{e}")

    await lh.stop()
    print("\n Script completed.")


if __name__ == "__main__":
    asyncio.run(main())

=== printlog (channel 0) ===
Rail Resource Type Coordinates (mm)

(-6) ├── trash_core96 Trash (-58.200, 106.000, 229.000)
│
(7) ├── plate_car PlateCarrier (235.000, 063.000, 100.000)
│ ├── plate_01 Plate (239.000, 071.500, 183.120)
│ ├──
│ ├──
│ ├──
│ ├──
│
(25) ├── trash Trash (655.000, 190.600, 137.100)
│
(42) ├── tip_car TipCarrier (1022.500, 063.000, 100.000)
│ ├── tips_01 TipRack (1028.700, 073.000, 214.950)
│ ├──
│ ├──
│ ├──
│ ├──
│
(53) ├── waste_block Resource (1270.000, 115.000, 100.000)
│ ├── teaching_tip_rack TipRack (1275.900, 461.100, 100.000)

None

=== Testing channel 1 ===

DEBUG ASPIRATE
use_channels: [1]
tip_pattern: [False, True, False]
x_positions (mm): [0, 2803, 0]
y_positions (mm): [0, 1457, 0]
volumes (tenths): [100]
Channel 1 aspirate/dispense succeeded
Validation file written to 16_channel_validation.json

Script completed.

=== printlog (channel 13) ===

Rail Resource Type Coordinates (mm)

(-6) ├── trash_core96 Trash (-58.200, 106.000, 229.000)
│
(7) ├── plate_car PlateCarrier (235.000, 063.000, 100.000)
│ ├── plate_01 Plate (239.000, 071.500, 183.120)
│ ├──
│ ├──
│ ├──
│ ├──
│
(25) ├── trash Trash (655.000, 190.600, 137.100)
│
(42) ├── tip_car TipCarrier (1022.500, 063.000, 100.000)
│ ├── tips_01 TipRack (1028.700, 073.000, 214.950)
│ ├──
│ ├──
│ ├──
│ ├──
│
(53) ├── waste_block Resource (1270.000, 115.000, 100.000)
│ ├── teaching_tip_rack TipRack (1275.900, 461.100, 100.000)

None

=== Testing channel 13 ===

DEBUG ASPIRATE
use_channels: [13]
tip_pattern: [False, False, False, False, False, False, False, False, False, False, False, False, False, True, False]
x_positions (mm): [0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2803, 0]
y_positions (mm): [0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1457, 0]
volumes (tenths): [100]
Timeout while waiting for response to command C0ASid0009at0 0 0 0 0 0 0 0 0 0 0 0 0 0 0&tm0 0 0 0 0 0 0 0 0 0 0 0 0 1 0&xp00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 02803 00000&yp0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 1457 0000&th2450te2450lp2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000&ch000 000 000 000 000 000 000 000 000 000 000 000 000 000 000&zl1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866&po0100 0100 0100 0100 0100 0100 0100 0100 0100 0100 0100 0100 0100 0100 0100&zu0032 0032 0032 0032 0032 0032 0032 0032 0032 0032 0032 0032 0032 0032 0032&zr06180 06180 06180 06180 06180 06180 06180 06180 06180 06180 06180 06180 06180 06180 06180&zx1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866&ip0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&it0 0 0 0 0 0 0 0 0 0 0 0 0 0 0&fp0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&av00127 00127 00127 00127 00127 00127 00127 00127 00127 00127 00127 00127 00127 00127 00127&as2500 2500 2500 2500 2500 2500 2500 2500 2500 2500 2500 2500 2500 2500 2500&ta000 000 000 000 000 000 000 000 000 000 000 000 000 000 000&ba0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&oa000 000 000 000 000 000 000 000 000 000 000 000 000 000 000&lm0 0 0 0 0 0 0 0 0 0 0 0 0 0 0&ll1 1 1 1 1 1 1 1 1 1 1 1 1 1 1&lv1 1 1 1 1 1 1 1 1 1 1 1 1 1 1&zo000 000 000 000 000 000 000 000 000 000 000 000 000 000 000&ld00 00 00 00 00 00 00 00 00 00 00 00 00 00 00&de0020 0020 0020 0020 0020 0020 0020 0020 0020 0020 0020 0020 0020 0020 0020&wt10 10 10 10 10 10 10 10 10 10 10 10 10 10 10&mv00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000&mc00 00 00 00 00 00 00 00 00 00 00 00 00 00 00&mp000 000 000 000 000 000 000 000 000 000 000 000 000 000 000&ms1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200&mh0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&gi000 000 000 000 000 000 000 000 000 000 000 000 000 000 000&gj0gk0lk0 0 0 0 0 0 0 0 0 0 0 0 0 0 0&ik0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&sd0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500&se0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500&sz0300 0300 0300 0300 0300 0300 0300 0300 0300 0300 0300 0300 0300 0300 0300&io0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&il00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000&in0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&.
ERROR during aspirate with channels [13]: Timeout while waiting for response to command C0ASid0009at0 0 0 0 0 0 0 0 0 0 0 0 0 0 0&tm0 0 0 0 0 0 0 0 0 0 0 0 0 1 0&xp00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 02803 00000&yp0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 1457 0000&th2450te2450lp2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000&ch000 000 000 000 000 000 000 000 000 000 000 000 000 000 000&zl1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866&po0100 0100 0100 0100 0100 0100 0100 0100 0100 0100 0100 0100 0100 0100 0100&zu0032 0032 0032 0032 0032 0032 0032 0032 0032 0032 0032 0032 0032 0032 0032&zr06180 06180 06180 06180 06180 06180 06180 06180 06180 06180 06180 06180 06180 06180 06180&zx1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866&ip0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&it0 0 0 0 0 0 0 0 0 0 0 0 0 0 0&fp0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&av00127 00127 00127 00127 00127 00127 00127 00127 00127 00127 00127 00127 00127 00127 00127&as2500 2500 2500 2500 2500 2500 2500 2500 2500 2500 2500 2500 2500 2500 2500&ta000 000 000 000 000 000 000 000 000 000 000 000 000 000 000&ba0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&oa000 000 000 000 000 000 000 000 000 000 000 000 000 000 000&lm0 0 0 0 0 0 0 0 0 0 0 0 0 0 0&ll1 1 1 1 1 1 1 1 1 1 1 1 1 1 1&lv1 1 1 1 1 1 1 1 1 1 1 1 1 1 1&zo000 000 000 000 000 000 000 000 000 000 000 000 000 000 000&ld00 00 00 00 00 00 00 00 00 00 00 00 00 00 00&de0020 0020 0020 0020 0020 0020 0020 0020 0020 0020 0020 0020 0020 0020 0020&wt10 10 10 10 10 10 10 10 10 10 10 10 10 10 10&mv00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000&mc00 00 00 00 00 00 00 00 00 00 00 00 00 00 00&mp000 000 000 000 000 000 000 000 000 000 000 000 000 000 000&ms1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200&mh0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&gi000 000 000 000 000 000 000 000 000 000 000 000 000 000 000&gj0gk0lk0 0 0 0 0 0 0 0 0 0 0 0 0 0 0&ik0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&sd0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500&se0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500&sz0300 0300 0300 0300 0300 0300 0300 0300 0300 0300 0300 0300 0300 0300 0300&io0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&il00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000&in0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&.
Channel 13 failed with error:
Timeout while waiting for response to command C0ASid0009at0 0 0 0 0 0 0 0 0 0 0 0 0 0 0&tm0 0 0 0 0 0 0 0 0 0 0 0 0 1 0&xp00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 02803 00000&yp0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 1457 0000&th2450te2450lp2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000&ch000 000 000 000 000 000 000 000 000 000 000 000 000 000 000&zl1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866&po0100 0100 0100 0100 0100 0100 0100 0100 0100 0100 0100 0100 0100 0100 0100&zu0032 0032 0032 0032 0032 0032 0032 0032 0032 0032 0032 0032 0032 0032 0032&zr06180 06180 06180 06180 06180 06180 06180 06180 06180 06180 06180 06180 06180 06180 06180&zx1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866 1866&ip0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&it0 0 0 0 0 0 0 0 0 0 0 0 0 0 0&fp0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&av00127 00127 00127 00127 00127 00127 00127 00127 00127 00127 00127 00127 00127 00127 00127&as2500 2500 2500 2500 2500 2500 2500 2500 2500 2500 2500 2500 2500 2500 2500&ta000 000 000 000 000 000 000 000 000 000 000 000 000 000 000&ba0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&oa000 000 000 000 000 000 000 000 000 000 000 000 000 000 000&lm0 0 0 0 0 0 0 0 0 0 0 0 0 0 0&ll1 1 1 1 1 1 1 1 1 1 1 1 1 1 1&lv1 1 1 1 1 1 1 1 1 1 1 1 1 1 1&zo000 000 000 000 000 000 000 000 000 000 000 000 000 000 000&ld00 00 00 00 00 00 00 00 00 00 00 00 00 00 00&de0020 0020 0020 0020 0020 0020 0020 0020 0020 0020 0020 0020 0020 0020 0020&wt10 10 10 10 10 10 10 10 10 10 10 10 10 10 10&mv00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000&mc00 00 00 00 00 00 00 00 00 00 00 00 00 00 00&mp000 000 000 000 000 000 000 000 000 000 000 000 000 000 000&ms1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200&mh0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&gi000 000 000 000 000 000 000 000 000 000 000 000 000 000 000&gj0gk0lk0 0 0 0 0 0 0 0 0 0 0 0 0 0 0&ik0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&sd0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500&se0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500 0500&sz0300 0300 0300 0300 0300 0300 0300 0300 0300 0300 0300 0300 0300 0300 0300&io0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&il00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000&in0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000&.

Script completed.

=== printlog (channel 14) ===
Rail Resource Type Coordinates (mm)

(-6) ├── trash_core96 Trash (-58.200, 106.000, 229.000)
│
(7) ├── plate_car PlateCarrier (235.000, 063.000, 100.000)
│ ├── plate_01 Plate (239.000, 071.500, 183.120)
│ ├──
│ ├──
│ ├──
│ ├──
│
(25) ├── trash Trash (655.000, 190.600, 137.100)
│
(42) ├── tip_car TipCarrier (1022.500, 063.000, 100.000)
│ ├── tips_01 TipRack (1028.700, 073.000, 214.950)
│ ├──
│ ├──
│ ├──
│ ├──
│
(53) ├── waste_block Resource (1270.000, 115.000, 100.000)
│ ├── teaching_tip_rack TipRack (1275.900, 461.100, 100.000)

None

=== Testing channel 14 ===

DEBUG ASPIRATE
use_channels: [14]
tip_pattern: [False, False, False, False, False, False, False, False, False, False, False, False, False, False, True, False]
x_positions (mm): [0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2803, 0]
y_positions (mm): [0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1457, 0]
volumes (tenths): [100]
ERROR during aspirate with channels [14]: {‘Master’: CommandSyntaxError(‘Parameter out of range’)}, C0ASid0010er01/32
Channel 14 failed with error:
{‘Master’: CommandSyntaxError(‘Parameter out of range’)}, C0ASid0010er01/32

Script completed.

KarlCahill · July 8, 2025, 11:41am

I apologize for the poor formatting …

I was able to run the cahnnels 13,14,15 in hamilton venus without an issue. Im not sure how to extract the trc file so i took a screnshot:

CamilloMoschner · July 8, 2025, 1:45pm

Hi @KarlCahill,
The .trc file is autogenerated by VENUS and stored in your folders under HAMILTON\LogFiles.

The .trc file usually just has the date as its name, i.e. if you run multiple Hamilton “method” files on the same day, all their firmware logs will be stored in the same .trc file.

KarlCahill · July 8, 2025, 2:13pm

Thank you!

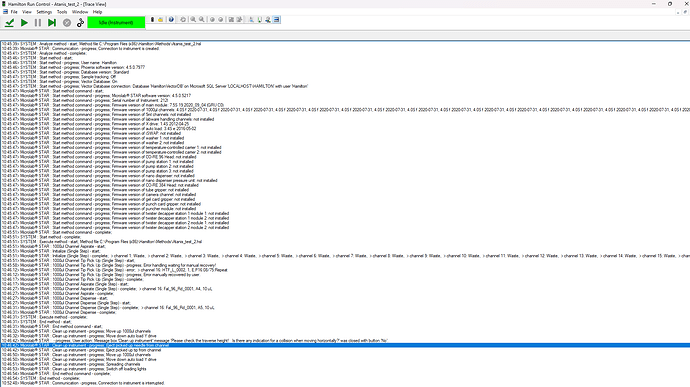

Here is the trace file in text:

2025-07-08 10:45:39> SYSTEM : Analyze method - start; Method file C:\Program Files (x86)\Hamilton\Methods\Atanis_test_2.hsl
2025-07-08 10:45:39> Microlab® STAR : Communication - progress; Connection to instrument is created.
2025-07-08 10:45:41> SYSTEM : Analyze method - complete;
2025-07-08 10:45:46> SYSTEM : Start method - start;
2025-07-08 10:45:46> SYSTEM : Start method - progress; User name: Hamilton
2025-07-08 10:45:46> SYSTEM : Start method - progress; Phoenix software version: 4.5.0.7977
2025-07-08 10:45:47> SYSTEM : Start method - progress; Database version: Standard
2025-07-08 10:45:47> SYSTEM : Start method - progress; Sample tracking: Off
2025-07-08 10:45:47> SYSTEM : Start method - progress; Vector Database: On
2025-07-08 10:45:47> SYSTEM : Start method - progress; Vector Database connection: Database ‘HamiltonVectorDB’ on Microsoft SQL Server ‘LOCALHOST\HAMILTON’ with user ‘Hamilton’
2025-07-08 10:45:47> Microlab® STAR : Start method command - start;
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Microlab® STAR software version: 4.5.0.5217
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Serial number of Instrument: 212I
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of main module: 7.5S 19 2020_09_04 (GRU C0)
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of 1000µl channels: 4.0S f 2020-07-31, 4.0S f 2020-07-31, 4.0S f 2020-07-31, 4.0S f 2020-07-31, 4.0S f 2020-07-31, 4.0S f 2020-07-31, 4.0S f 2020-07-31, 4.0S f 2020-07-31, 4.0S f 2020-07-31, 4.0S f 2020-07-31, 4.0S f 2020-07-31, 4.0S f 2020-07-31, 4.0S f 2020-07-31, 4.0S f 2020-07-31, 4.0S f 2020-07-31, 4.0S f 2020-07-31
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of 5ml channels: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of labware handling channels: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of X drive: 1.4S 2012-04-25
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of auto load: 3.4S e 2016-05-02
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of iSWAP: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of washer 1: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of washer 2: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of temperature-controlled carrier 1: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of temperature-controlled carrier 2: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of CO-RE 96 Head: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of pump station 1: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of pump station 2: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of pump station 3: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of nano dispenser: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of nano dispenser pressure unit: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of CO-RE 384 Head: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of tube gripper: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of camera channel: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of gel card gripper: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of punch card gripper: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of puncher module: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of twister decapper station 1 module 1: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of twister decapper station 1 module 2: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of twister decapper station 2 module 1: not installed
2025-07-08 10:45:47> Microlab® STAR : Start method command - progress; Firmware version of twister decapper station 2 module 2: not installed
2025-07-08 10:45:51> Microlab® STAR : Start method command - complete;
2025-07-08 10:45:51> SYSTEM : Start method - complete;
2025-07-08 10:45:51> SYSTEM : Execute method - start; Method file C:\Program Files (x86)\Hamilton\Methods\Atanis_test_2.hsl
2025-07-08 10:45:51> Microlab® STAR : 1000ul Channel Aspirate - start;
2025-07-08 10:45:51> Microlab® STAR : Initialize (Single Step) - start;
2025-07-08 10:45:51> Microlab® STAR : Initialize (Single Step) - complete; > channel 1: Waste, > channel 2: Waste, > channel 3: Waste, > channel 4: Waste, > channel 5: Waste, > channel 6: Waste, > channel 7: Waste, > channel 8: Waste, > channel 9: Waste, > channel 10: Waste, > channel 11: Waste, > channel 12: Waste, > channel 13: Waste, > channel 14: Waste, > channel 15: Waste, > channel 16: Waste,
2025-07-08 10:45:51> Microlab® STAR : 1000ul Channel Tip Pick Up (Single Step) - start;
2025-07-08 10:45:58> Microlab® STAR : 1000ul Channel Tip Pick Up (Single Step) - progress; Error handling waiting for manual recovery!
2025-07-08 10:46:12> Microlab® STAR : 1000ul Channel Tip Pick Up (Single Step) - error; > channel 16: HTF_L_0002, 1, E:P16:08/75:Repeat
2025-07-08 10:46:12> Microlab® STAR : 1000ul Channel Tip Pick Up (Single Step) - progress; Error manually recovered by user.
2025-07-08 10:46:17> Microlab® STAR : 1000ul Channel Tip Pick Up (Single Step) - complete;
2025-07-08 10:46:17> Microlab® STAR : 1000ul Channel Aspirate (Single Step) - start;
2025-07-08 10:46:27> Microlab® STAR : 1000ul Channel Aspirate (Single Step) - complete; > channel 16: Fal_96_Rd_0001, A4, 10 uL
2025-07-08 10:46:27> Microlab® STAR : 1000ul Channel Aspirate - complete;
2025-07-08 10:46:27> Microlab® STAR : 1000ul Channel Dispense - start;
2025-07-08 10:46:27> Microlab® STAR : 1000ul Channel Dispense (Single Step) - start;
2025-07-08 10:46:31> Microlab® STAR : 1000ul Channel Dispense (Single Step) - complete; > channel 16: Fal_96_Rd_0001, A5, 10 uL
2025-07-08 10:46:31> Microlab® STAR : 1000ul Channel Dispense - complete;
2025-07-08 10:46:31> SYSTEM : Execute method - complete;
2025-07-08 10:46:31> SYSTEM : End method - start;
2025-07-08 10:46:31> Microlab® STAR : End method command - start;
2025-07-08 10:46:32> Microlab® STAR : Clean up instrument - progress; Move up 1000ul channels
2025-07-08 10:46:32> Microlab® STAR : Clean up instrument - progress; Move down auto load Y drive
2025-07-08 10:46:42> Microlab® STAR : - progress; User action: Message box ‘Clean up instrument’ message ‘Please check the traverse height! Is there any indication for a collision when moving horizontally?’ was closed with button ‘No’.
2025-07-08 10:46:42> Microlab® STAR : Clean up instrument - progress; Eject picked up needle from channel
2025-07-08 10:46:42> Microlab® STAR : Clean up instrument - progress; Eject picked up tip from channel
2025-07-08 10:46:50> Microlab® STAR : Clean up instrument - progress; Move up 1000ul channels
2025-07-08 10:46:50> Microlab® STAR : Clean up instrument - progress; Move down auto load Y drive
2025-07-08 10:46:51> Microlab® STAR : Clean up instrument - progress; Spreading channels
2025-07-08 10:46:53> Microlab® STAR : Clean up instrument - progress; Switch off loading lights
2025-07-08 10:46:54> Microlab® STAR : End method command - complete;
2025-07-08 10:46:54> SYSTEM : End method - complete;
2025-07-08 10:52:48> Microlab® STAR : Communication - progress; Connection to instrument is interrupted.
2025-07-08 13:45:22> SYSTEM : File checksum - written; $$author=Hamilton$$valid=0$$time=2025-07-08 13:45$$checksum=175880d8$$length=137$$

CamilloMoschner · July 8, 2025, 2:20pm

I think we’re almost there:

Is this the file named HxUsbComm20250708.trc?

(assuming you executed this script today)

KarlCahill · July 8, 2025, 2:44pm

Ah no the previous trc file was named “Atanis_test_2_ddd060ab33d5411594f7984163f1fe0d_Trace.trc”

Btw i am not permitted to upload .txt files, the file is a bit too extensive to paste in one go, ill write it in two replies:

here is the file you mention for HxUsbComm20250708.trc(1/2):
< 10:42:41.241 8AF#8000#00: C0RQid0101

10:42:41.257 8AF#8000#00: C0RQid0101rq0000
< 10:42:41.260 8AF#8000#00: C0QBid0102
10:42:41.276 8AF#8000#00: C0QBid0102er00/00qb1
< 10:42:41.279 8AF#8000#00: C0RIid0103
10:42:41.296 8AF#8000#00: C0RIid0103er00/00si2022-01-12sn212I
< 10:42:41.298 8AF#8000#00: C0QMid0104
10:42:41.324 8AF#8000#00: C0QMid0104er00/00ka000000xt54xa54xw13400xl01xr00xm03500xx11400ys090xu3540xv3700yu0060kl360kc0yx0060ke00000100xn00xo00ym6065kr0km360
< 10:42:41.324 8AF#8000#00: C0RMid0105
10:42:41.425 8AF#8000#00: C0RMid0105er00/00kb0Dkp16 C00000 X00000 P10000 P20000 P30000 P40000 P50000 P60000 P70000 P80000 P90000 PA0000 PB0000 PC0000 PD0000 PE0000 PF0000 PG0000 I00000
< 10:42:41.426 8AF#8000#00: C0RFid0106
10:42:41.437 8AF#8000#00: C0RFid0106er00/00rf7.5S 19 2020_09_04 (GRU C0)
< 10:42:41.437 8AF#8000#00: P1RFid0107
10:42:41.459 8AF#8000#00: P1RFid0107rf4.0S f 2020-07-31
< 10:42:41.459 8AF#8000#00: P1RJid0108
10:42:41.471 8AF#8000#00: P1RJid0108jd2025-05-12js1
< 10:42:41.471 8AF#8000#00: P2RFid0109
10:42:41.482 8AF#8000#00: P2RFid0109rf4.0S f 2020-07-31
< 10:42:41.485 8AF#8000#00: P2RJid0110
10:42:41.497 8AF#8000#00: P2RJid0110jd2025-05-12js1
< 10:42:41.497 8AF#8000#00: P3RFid0111
10:42:41.510 8AF#8000#00: P3RFid0111rf4.0S f 2020-07-31
< 10:42:41.510 8AF#8000#00: P3RJid0112
10:42:41.523 8AF#8000#00: P3RJid0112jd2025-05-12js1
< 10:42:41.523 8AF#8000#00: P4RFid0113
10:42:41.532 8AF#8000#00: P4RFid0113rf4.0S f 2020-07-31
< 10:42:41.532 8AF#8000#00: P4RJid0114
10:42:41.549 8AF#8000#00: P4RJid0114jd2025-05-12js1
< 10:42:41.549 8AF#8000#00: P5RFid0115
10:42:41.549 8AF#8000#00: P5RFid0115rf4.0S f 2020-07-31
< 10:42:41.549 8AF#8000#00: P5RJid0116
10:42:41.565 8AF#8000#00: P5RJid0116jd2025-05-12js1
< 10:42:41.565 8AF#8000#00: P6RFid0117
10:42:41.581 8AF#8000#00: P6RFid0117rf4.0S f 2020-07-31
< 10:42:41.581 8AF#8000#00: P6RJid0118
10:42:41.599 8AF#8000#00: P6RJid0118jd2025-05-12js1
< 10:42:41.599 8AF#8000#00: P7RFid0119
10:42:41.610 8AF#8000#00: P7RFid0119rf4.0S f 2020-07-31
< 10:42:41.610 8AF#8000#00: P7RJid0120
10:42:41.622 8AF#8000#00: P7RJid0120jd2025-05-12js1
< 10:42:41.623 8AF#8000#00: P8RFid0121
10:42:41.633 8AF#8000#00: P8RFid0121rf4.0S f 2020-07-31
< 10:42:41.633 8AF#8000#00: P8RJid0122
10:42:41.645 8AF#8000#00: P8RJid0122jd2025-05-12js1
< 10:42:41.647 8AF#8000#00: P9RFid0123
10:42:41.659 8AF#8000#00: P9RFid0123rf4.0S f 2020-07-31
< 10:42:41.659 8AF#8000#00: P9RJid0124
10:42:41.671 8AF#8000#00: P9RJid0124jd2025-05-12js1
< 10:42:41.671 8AF#8000#00: PARFid0125
10:42:41.683 8AF#8000#00: PARFid0125rf4.0S f 2020-07-31
< 10:42:41.683 8AF#8000#00: PARJid0126
10:42:41.696 8AF#8000#00: PARJid0126jd2025-05-12js1
< 10:42:41.697 8AF#8000#00: PBRFid0127
10:42:41.708 8AF#8000#00: PBRFid0127rf4.0S f 2020-07-31
< 10:42:41.710 8AF#8000#00: PBRJid0128
10:42:41.721 8AF#8000#00: PBRJid0128jd2025-05-12js1
< 10:42:41.721 8AF#8000#00: PCRFid0129
10:42:41.726 8AF#8000#00: PCRFid0129rf4.0S f 2020-07-31
< 10:42:41.726 8AF#8000#00: PCRJid0130
10:42:41.747 8AF#8000#00: PCRJid0130jd2025-05-12js1
< 10:42:41.747 8AF#8000#00: PDRFid0131
10:42:41.759 8AF#8000#00: PDRFid0131rf4.0S f 2020-07-31
< 10:42:41.759 8AF#8000#00: PDRJid0132
10:42:41.773 8AF#8000#00: PDRJid0132jd2025-05-12js1
< 10:42:41.774 8AF#8000#00: PERFid0133
10:42:41.785 8AF#8000#00: PERFid0133rf4.0S f 2020-07-31
< 10:42:41.785 8AF#8000#00: PERJid0134
10:42:41.796 8AF#8000#00: PERJid0134jd2025-05-12js1
< 10:42:41.796 8AF#8000#00: PFRFid0135
10:42:41.813 8AF#8000#00: PFRFid0135rf4.0S f 2020-07-31
< 10:42:41.813 8AF#8000#00: PFRJid0136
10:42:41.826 8AF#8000#00: PFRJid0136jd2025-05-12js1
< 10:42:41.826 8AF#8000#00: PGRFid0137
10:42:41.833 8AF#8000#00: PGRFid0137rf4.0S f 2020-07-31
< 10:42:41.838 8AF#8000#00: PGRJid0138
10:42:41.851 8AF#8000#00: PGRJid0138jd2025-05-12js1
< 10:42:41.851 8AF#8000#00: C0QBid0139
10:42:41.854 8AF#8000#00: C0QBid0139er00/00qb1
< 10:42:41.870 8AF#8000#00: X0RFid0140
10:42:41.870 8AF#8000#00: X0RFid0140rf1.4S 2012-04-25
< 10:42:41.870 8AF#8000#00: X0RJid0141
10:42:41.890 8AF#8000#00: X0RJid0141jd2025-05-12js1
< 10:42:41.891 8AF#8000#00: I0RFid0142
10:42:41.893 8AF#8000#00: I0RFid0142rf3.4S e 2016-05-02
< 10:42:41.902 8AF#8000#00: I0RJid0143
10:42:41.902 8AF#8000#00: I0RJid0143jd2022-01-12js1
< 10:42:41.918 8AF#8000#00: C0RMid0144
10:42:42.016 8AF#8000#00: C0RMid0144er00/00kb0Dkp16 C00000 X00000 P10000 P20000 P30000 P40000 P50000 P60000 P70000 P80000 P90000 PA0000 PB0000 PC0000 PD0000 PE0000 PF0000 PG0000 I00000
< 10:42:42.029 8AF#8000#00: C0QMid0145
10:42:42.075 8AF#8000#00: C0QMid0145er00/00ka000000xt54xa54xw13400xl01xr00xm03500xx11400ys090xu3540xv3700yu0060kl360kc0yx0060ke00000100xn00xo00ym6065kr0km360
< 10:42:42.078 8AF#8000#00: C0SRid0146
10:42:42.094 8AF#8000#00: C0SRid0146er00/00sr055
< 10:42:42.109 8AF#8000#00: C0RUid0147
10:42:42.148 8AF#8000#00: C0RUid0147er00/00ru00950 13400 30000 30000
< 10:42:45.121 8AF#8000#00: C0RVid0148vo00
10:42:45.168 8AF#8000#00: C0RVid0148er00/00vd2025-06-30 10:25vs0
< 10:42:45.168 8AF#8000#00: C0RVid0149vo01
10:42:45.234 8AF#8000#00: C0RVid0149er00/00vd2025-05-12 15:34vs1
< 10:42:45.247 8AF#8000#00: C0RVid0150vo05
10:42:45.297 8AF#8000#00: C0RVid0150er00/00vd2023-03-11 23:59vs1
< 10:42:45.297 8AF#8000#00: C0RSid0151
10:42:45.327 8AF#8000#00: C0RSid0151er00/00ts2025-06-30 10:30
< 10:42:45.327 8AF#8000#00: C0RIid0152
10:42:45.343 8AF#8000#00: C0RIid0152er00/00si2022-01-12sn212I
< 10:42:45.343 8AF#8000#00: C0RMid0153
10:42:45.437 8AF#8000#00: C0RMid0153er00/00kb0Dkp16 C00000 X00000 P10000 P20000 P30000 P40000 P50000 P60000 P70000 P80000 P90000 PA0000 PB0000 PC0000 PD0000 PE0000 PF0000 PG0000 I00000
< 10:42:45.437 8AF#8000#00: P1RVid0154
10:42:45.459 8AF#8000#00: P1RVid0154na0000002018nb0000002008nc0000000891nd0000002014
< 10:42:45.460 8AF#8000#00: P2RVid0155
10:42:45.474 8AF#8000#00: P2RVid0155na0000002009nb0000001999nc0000000887nd0000001981
< 10:42:45.475 8AF#8000#00: P3RVid0156
10:42:45.489 8AF#8000#00: P3RVid0156na0000002012nb0000002002nc0000000886nd0000001954
< 10:42:45.490 8AF#8000#00: P4RVid0157
10:42:45.501 8AF#8000#00: P4RVid0157na0000002014nb0000002004nc0000000885nd0000001934
< 10:42:45.501 8AF#8000#00: P5RVid0158
10:42:45.517 8AF#8000#00: P5RVid0158na0000001975nb0000001965nc0000000739nd0000000893
< 10:42:45.517 8AF#8000#00: P6RVid0159
10:42:45.536 8AF#8000#00: P6RVid0159na0000001972nb0000001962nc0000000744nd0000000899
< 10:42:45.536 8AF#8000#00: P7RVid0160
10:42:45.551 8AF#8000#00: P7RVid0160na0000002095nb0000002085nc0000000739nd0000000894
< 10:42:45.551 8AF#8000#00: P8RVid0161
10:42:45.568 8AF#8000#00: P8RVid0161na0000002153nb0000002139nc0000000759nd0000000913
< 10:42:45.571 8AF#8000#00: P9RVid0162
10:42:45.585 8AF#8000#00: P9RVid0162na0000001952nb0000001952nc0000000719nd0000000912
< 10:42:45.585 8AF#8000#00: PARVid0163
10:42:45.597 8AF#8000#00: PARVid0163na0000001923nb0000001923nc0000000704nd0000000898
< 10:42:45.597 8AF#8000#00: PBRVid0164
10:42:45.618 8AF#8000#00: PBRVid0164na0000001923nb0000001923nc0000000703nd0000000897
< 10:42:45.618 8AF#8000#00: PCRVid0165
10:42:45.635 8AF#8000#00: PCRVid0165na0000001923nb0000001923nc0000000704nd0000000898
< 10:42:45.635 8AF#8000#00: PDRVid0166
10:42:45.651 8AF#8000#00: PDRVid0166na0000001938nb0000001938nc0000000716nd0000000910
< 10:42:45.651 8AF#8000#00: PERVid0167
10:42:45.667 8AF#8000#00: PERVid0167na0000001944nb0000001944nc0000000714nd0000000908
< 10:42:45.670 8AF#8000#00: PFRVid0168
10:42:45.685 8AF#8000#00: PFRVid0168na0000001982nb0000001983nc0000000718nd0000000912
< 10:42:45.685 8AF#8000#00: PGRVid0169
10:42:45.698 8AF#8000#00: PGRVid0169na0000002056nb0000002047nc0000000774nd0000000961
< 10:42:45.698 8AF#8000#00: P1VWid0170
10:42:45.713 8AF#8000#00: P1VWid0170vw0 0
< 10:42:45.714 8AF#8000#00: P2VWid0171
10:42:45.724 8AF#8000#00: P2VWid0171vw0 0
< 10:42:45.724 8AF#8000#00: P3VWid0172
10:42:45.732 8AF#8000#00: P3VWid0172vw0 0
< 10:42:45.732 8AF#8000#00: P4VWid0173
10:42:45.746 8AF#8000#00: P4VWid0173vw0 0
< 10:42:45.748 8AF#8000#00: P5VWid0174
10:42:45.758 8AF#8000#00: P5VWid0174vw0 0
< 10:42:45.760 8AF#8000#00: P6VWid0175
10:42:45.772 8AF#8000#00: P6VWid0175vw0 0
< 10:42:45.772 8AF#8000#00: P7VWid0176
10:42:45.777 8AF#8000#00: P7VWid0176vw0 0
< 10:42:45.777 8AF#8000#00: P8VWid0177
10:42:45.797 8AF#8000#00: P8VWid0177vw0 0
< 10:42:45.797 8AF#8000#00: P9VWid0178
10:42:45.806 8AF#8000#00: P9VWid0178vw0 0
< 10:42:45.806 8AF#8000#00: PAVWid0179
10:42:45.824 8AF#8000#00: PAVWid0179vw0 0
< 10:42:45.824 8AF#8000#00: PBVWid0180
10:42:45.838 8AF#8000#00: PBVWid0180vw0 0
< 10:42:45.841 8AF#8000#00: PCVWid0181
10:42:45.841 8AF#8000#00: PCVWid0181vw0 0
< 10:42:45.841 8AF#8000#00: PDVWid0182
10:42:45.864 8AF#8000#00: PDVWid0182vw0 0
< 10:42:45.865 8AF#8000#00: PEVWid0183
10:42:45.871 8AF#8000#00: PEVWid0183vw0 0
< 10:42:45.871 8AF#8000#00: PFVWid0184
10:42:45.890 8AF#8000#00: PFVWid0184vw0 0
< 10:42:45.890 8AF#8000#00: PGVWid0185
10:42:45.905 8AF#8000#00: PGVWid0185vw0 0
< 10:42:45.961 8AF#8000#00: C0TTid0186tt44tf1tl0570tv01750tg3tu0
10:42:45.981 8AF#8000#00: C0TTid0186er00/00
< 10:42:45.999 8AF#8000#00: C0TTid0187tt33tf0tl0319tv00700tg6tu0
10:42:46.013 8AF#8000#00: C0TTid0187er00/00
< 10:42:46.029 8AF#8000#00: C0TTid0188tt22tf0tl0424tv00650tg2tu0
10:42:46.069 8AF#8000#00: C0TTid0188er00/00
< 10:42:46.083 8AF#8000#00: C0TTid0189tt11tf0tl0490tv00150tg2tu1
10:42:46.110 8AF#8000#00: C0TTid0189er00/00
< 10:42:46.125 8AF#8000#00: C0TTid0190tt03tf1tl0219tv00100tg1tu0
10:42:46.152 8AF#8000#00: C0TTid0190er00/00
< 10:42:46.167 8AF#8000#00: C0TTid0191tt45tf1tl0870tv03450tg3tu0
10:42:46.192 8AF#8000#00: C0TTid0191er00/00
< 10:42:46.208 8AF#8000#00: C0TTid0192tt34tf0tl0235tv00010tg2tu0
10:42:46.225 8AF#8000#00: C0TTid0192er00/00
< 10:42:46.264 8AF#8000#00: C0TTid0193tt23tf1tl0424tv00600tg2tu0
10:42:46.284 8AF#8000#00: C0TTid0193er00/00
< 10:42:46.305 8AF#8000#00: C0TTid0194tt12tf0tl0490tv03500tg2tu1
10:42:46.331 8AF#8000#00: C0TTid0194er00/00
< 10:42:46.331 8AF#8000#00: C0TTid0195tt04tf0tl0871tv12500tg3tu0
10:42:46.368 8AF#8000#00: C0TTid0195er00/00
< 10:42:46.379 8AF#8000#00: C0TTid0196tt46tf0tl0290tv17200tg3tu1
10:42:46.414 8AF#8000#00: C0TTid0196er00/00
< 10:42:46.429 8AF#8000#00: C0TTid0197tt35tf0tl0570tv03500tg3tu0
10:42:46.447 8AF#8000#00: C0TTid0197er00/00
< 10:42:46.460 8AF#8000#00: C0TTid0198tt24tf0tl0820tv01800tg3tu1
10:42:46.495 8AF#8000#00: C0TTid0198er00/00
< 10:42:46.515 8AF#8000#00: C0TTid0199tt13tf0tl0820tv12500tg3tu1
10:42:46.542 8AF#8000#00: C0TTid0199er00/00
< 10:42:46.557 8AF#8000#00: C0TTid0200tt05tf1tl0871tv10650tg3tu0
10:42:46.577 8AF#8000#00: C0TTid0200er00/00
< 10:42:46.600 8AF#8000#00: C0TTid0201tt47tf0tl0465tv00010tg2tu0
10:42:46.620 8AF#8000#00: C0TTid0201er00/00
< 10:42:46.644 8AF#8000#00: C0TTid0202tt36tf0tl0870tv03850tg3tu0
10:42:46.667 8AF#8000#00: C0TTid0202er00/00
< 10:42:46.683 8AF#8000#00: C0TTid0203tt25tf0tl1080tv54200tg5tu0
10:42:46.712 8AF#8000#00: C0TTid0203er00/00
< 10:42:46.715 8AF#8000#00: C0TTid0204tt14tf0tl0220tv00010tg0tu0
10:42:46.747 8AF#8000#00: C0TTid0204er00/00
< 10:42:46.772 8AF#8000#00: C0TTid0205tt06tf0tl0519tv00700tg2tu1
10:42:46.799 8AF#8000#00: C0TTid0205er00/00
< 10:42:46.810 8AF#8000#00: C0TTid0206tt48tf0tl0829tv08000tg3tu1
10:42:46.827 8AF#8000#00: C0TTid0206er00/00
< 10:42:46.843 8AF#8000#00: C0TTid0207tt37tf0tl0319tv00700tg6tu0
10:42:46.879 8AF#8000#00: C0TTid0207er00/00
< 10:42:46.893 8AF#8000#00: C0TTid0208tt26tf0tl1080tv00010tg5tu0
10:42:46.922 8AF#8000#00: C0TTid0208er00/00
< 10:42:46.924 8AF#8000#00: C0TTid0209tt15tf0tl0256tv00350tg4tu0
10:42:46.960 8AF#8000#00: C0TTid0209er00/00
< 10:42:46.972 8AF#8000#00: C0TTid0210tt07tf0tl0519tv03500tg2tu1
10:42:47.005 8AF#8000#00: C0TTid0210er00/00
< 10:42:47.023 8AF#8000#00: C0TTid0211tt49tf0tl0820tv03020tg3tu1
10:42:47.037 8AF#8000#00: C0TTid0211er00/00
< 10:42:47.053 8AF#8000#00: C0TTid0212tt38tf0tl0490tv00650tg2tu1
10:42:47.089 8AF#8000#00: C0TTid0212er00/00
< 10:42:47.110 8AF#8000#00: C0TTid0213tt27tf0tl0190tv00010tg0tu0
10:42:47.136 8AF#8000#00: C0TTid0213er00/00
< 10:42:47.156 8AF#8000#00: C0TTid0214tt16tf0tl0251tv00350tg0tu0
10:42:47.181 8AF#8000#00: C0TTid0214er00/00
< 10:42:47.201 8AF#8000#00: C0TTid0215tt08tf0tl0871tv12500tg3tu1
10:42:47.228 8AF#8000#00: C0TTid0215er00/00
< 10:42:47.244 8AF#8000#00: C0TTid0216tt39tf0tl0820tv01200tg3tu1
10:42:47.272 8AF#8000#00: C0TTid0216er00/00
< 10:42:47.276 8AF#8000#00: C0TTid0217tt28tf0tl0626tv04000tg6tu0
10:42:47.312 8AF#8000#00: C0TTid0217er00/00
< 10:42:47.312 8AF#8000#00: C0TTid0218tt17tf0tl0251tv00350tg0tu0
10:42:47.344 8AF#8000#00: C0TTid0218er00/00
< 10:42:47.356 8AF#8000#00: C0TTid0219tt29tf1tl1080tv43670tg5tu0
10:42:47.389 8AF#8000#00: C0TTid0219er00/00
< 10:42:47.402 8AF#8000#00: C0TTid0220tt18tf1tl0210tv12500tg0tu1
10:42:47.420 8AF#8000#00: C0TTid0220er00/00
< 10:42:47.443 8AF#8000#00: C0TTid0221tt19tf0tl0534tv00670tg2tu0
10:42:47.470 8AF#8000#00: C0TTid0221er00/00
< 10:42:47.488 8AF#8000#00: C0TTid0222tt50tf0tl0820tv08000tg3tu1
10:42:47.515 8AF#8000#00: C0TTid0222er00/00
< 10:42:47.529 8AF#8000#00: C0TTid0223tt51tf0tl0111tv00010tg0tu0
10:42:47.552 8AF#8000#00: C0TTid0223er00/00
< 10:42:47.561 8AF#8000#00: C0TTid0224tt40tf0tl0820tv02000tg3tu1
10:42:47.601 8AF#8000#00: C0TTid0224er00/00
< 10:42:47.609 8AF#8000#00: C0TTid0225tt52tf0tl0430tv00010tg0tu0
10:42:47.641 8AF#8000#00: C0TTid0225er00/00
< 10:42:47.641 8AF#8000#00: C0TTid0226tt41tf0tl0820tv03460tg3tu1
10:42:47.678 8AF#8000#00: C0TTid0226er00/00
< 10:42:47.688 8AF#8000#00: C0TTid0227tt30tf0tl0519tv04000tg2tu0
10:42:47.724 8AF#8000#00: C0TTid0227er00/00
< 10:42:47.740 8AF#8000#00: C0TTid0228tt00tf0tl0519tv04000tg2tu0
10:42:47.767 8AF#8000#00: C0TTid0228er00/00
< 10:42:47.779 8AF#8000#00: C0TTid0229tt53tf0tl0485tv35000tg0tu0
10:42:47.799 8AF#8000#00: C0TTid0229er00/00
< 10:42:47.823 8AF#8000#00: C0TTid0230tt42tf0tl0490tv03550tg2tu1
10:42:47.845 8AF#8000#00: C0TTid0230er00/00
< 10:42:47.866 8AF#8000#00: C0TTid0231tt31tf0tl0422tv00650tg2tu0
10:42:47.892 8AF#8000#00: C0TTid0231er00/00
< 10:42:47.893 8AF#8000#00: C0TTid0232tt20tf0tl0343tv00650tg4tu0
10:42:47.924 8AF#8000#00: C0TTid0232er00/00
< 10:42:47.950 8AF#8000#00: C0TTid0233tt01tf1tl0519tv03600tg2tu0
10:42:47.979 8AF#8000#00: C0TTid0233er00/00
< 10:42:47.994 8AF#8000#00: C0TTid0234tt43tf0tl0820tv11350tg3tu1
10:42:48.021 8AF#8000#00: C0TTid0234er00/00
< 10:42:48.036 8AF#8000#00: C0TTid0235tt32tf0tl0219tv00150tg1tu0
10:42:48.050 8AF#8000#00: C0TTid0235er00/00
< 10:42:48.077 8AF#8000#00: C0TTid0236tt21tf0tl0442tv00610tg6tu1
10:42:48.106 8AF#8000#00: C0TTid0236er00/00
< 10:42:48.114 8AF#8000#00: C0TTid0237tt10tf0tl0519tv04000tg2tu0
10:42:48.148 8AF#8000#00: C0TTid0237er00/00
< 10:42:48.148 8AF#8000#00: C0TTid0238tt02tf0tl0219tv00150tg1tu0
10:42:48.188 8AF#8000#00: C0TTid0238er00/00
< 10:42:48.188 8AF#8000#00: C0DRid0239
10:42:48.210 8AF#8000#00: C0DRid0239er00/00
< 10:42:48.221 8AF#8000#00: C0CUid0240cu0
10:42:48.243 8AF#8000#00: C0CUid0240er00/00
< 10:42:48.246 8AF#8000#00: C0CEid0241
10:42:48.266 8AF#8000#00: C0CEid0241er00/00
< 10:42:48.277 8AF#8000#00: C0QCid0242
10:42:48.298 8AF#8000#00: C0QCid0242er00/00qc1
< 10:42:48.298 8AF#8000#00: C0AWid0243
10:42:48.664 8AF#8000#00: C0AWid0243er00/00
< 10:42:48.673 8AF#8000#00: PXAFid0244af0
10:42:48.823 8AF#8000#00: PXAFid0244er00
< 10:42:48.823 8AF#8000#00: C0QSid0245
10:42:48.894 8AF#8000#00: C0QSid0245er00/00qs0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
< 10:42:48.912 8AF#8000#00: C0RJid0246
10:42:48.974 8AF#8000#00: C0RJid0246er00/00tq1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
< 10:42:48.990 8AF#8000#00: C0AWid0247
10:42:49.359 8AF#8000#00: C0AWid0247er00/00
< 10:42:49.362 8AF#8000#00: C0CPid0248cl00000000000000cb00000000000000
10:42:49.398 8AF#8000#00: C0CPid0248er00/00
< 10:42:49.398 8AF#8000#00: C0CBid0249bt7Fmq00
10:42:49.427 8AF#8000#00: C0CBid0249er00/00
< 10:42:49.610 8AF#8000#00: C0QWid0250
10:42:49.680 8AF#8000#00: C0QWid0250er00/00qw0
< 10:42:49.693 8AF#8000#00: C0IIid0251
< 10:42:49.701 8AF#8000#00: C0RTid0252
10:42:49.781 8AF#8000#00: C0RTid0252er00/00rt0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
< 10:42:49.800 8AF#8000#00: C0VIid0253
10:42:57.973 8AF#8000#00: C0VIid0253er00/00
< 10:42:57.993 8AF#8000#00: C0DIid0254xp13400&yp4050 3925 3800 3675 3550 3425 3300 3175 3050 2925 2800 2675 2550 2425 2300 2175tp2450tz1220te2450tm1&tt04ti0
10:43:03.996 8AF#8000#00: C0IIid0251er00/00
10:43:35.278 8AF#8000#00: C0DIid0254er00/00kz000 000 000 000 000 000 000 000 000 000 000 000 000 000 000 000vz000 000 000 000 000 000 000 000 000 000 000 000 000 000 000 000
< 10:43:35.302 8AF#8000#00: C0RTid0255
10:43:35.367 8AF#8000#00: C0RTid0255er00/00rt0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
< 10:43:35.385 8AF#8000#00: C0RTid0256
10:43:35.458 8AF#8000#00: C0RTid0256er00/00rt0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
< 10:43:35.509 8AF#8000#00: C0TPid0257xp00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 10404yp0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 2418tm0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1tt05tp2264tz2164th2450td1
10:43:42.556 8AF#8000#00: C0TPid0257er00/00sx000 000 000 000 000 000 000 000 000 000 000 000 000 000 000 466sg000 000 000 000 000 000 000 000 000 000 000 000 000 000 000 498
< 10:43:42.556 8AF#8000#00: C0RTid0258
10:43:42.625 8AF#8000#00: C0RTid0258er00/00rt0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
< 10:43:42.651 8AF#8000#00: C0RTid0259
10:43:42.730 8AF#8000#00: C0RTid0259er00/00rt0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
< 10:43:42.935 8AF#8000#00: C0ASid0260at0&tm0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1xp00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 13400yp0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 4050th2450te2450lp2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 1910ch000&zl2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 1870zx0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 1870ip0020&it0&fp0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0003av00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 01096as2500&ta050&ba0400&oa000&lm1&ll2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 4lv1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 4ld00&de0020&wt10&mv00000&mc00&mp000&ms2500&gi000&gj0gk0zu0000&zr00000&mh0000&zo005&po0050&lk0&ik0000&sd0500&se0500&sz0300&io0000&il00000&in0000&
10:43:48.533 8AF#8000#00: C0ASid0260er99/00 PG06/70
< 10:43:48.623 8AF#8000#00: C0RLid0261
10:43:48.692 8AF#8000#00: C0RLid0261er00/00lh+0000 +0000 +0000 +0000 +0000 +0000 +0000 +0000 +0000 +0000 +0000 +0000 +0000 +0000 +0000 +0000
< 10:43:58.544 8AF#8000#00: C0HDid0262
< 10:43:58.545 8AF#8000#00: C0RTid0263
10:43:58.588 8AF#8000#00: C0HDid0262er00/00
10:43:58.661 8AF#8000#00: C0RTid0263er00/00rt0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
< 10:43:58.677 8AF#8000#00: C0ZAid0264
10:43:58.929 8AF#8000#00: C0ZAid0264er00/00
< 10:43:58.945 8AF#8000#00: C0IVid0265
10:44:00.164 8AF#8000#00: C0IVid0265er00/00
< 10:44:04.228 8AF#8000#00: C0BCid0266
10:44:04.354 8AF#8000#00: C0BCid0266er00/00
< 10:44:04.367 8AF#8000#00: C0HDid0267
10:44:04.395 8AF#8000#00: C0HDid0267er00/00
< 10:44:04.637 8AF#8000#00: C0CEid0268
10:44:04.656 8AF#8000#00: C0CEid0268er00/00
< 10:44:04.658 8AF#8000#00: C0QCid0269
10:44:04.677 8AF#8000#00: C0QCid0269er00/00qc1
< 10:44:04.679 8AF#8000#00: C0AWid0270
10:44:05.043 8AF#8000#00: C0AWid0270er00/00
< 10:44:05.054 8AF#8000#00: C0AWid0271
10:44:05.415 8AF#8000#00: C0AWid0271er00/00
< 10:44:05.415 8AF#8000#00: C0RTid0272
10:44:05.498 8AF#8000#00: C0RTid0272er00/00rt0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
< 10:44:05.508 8AF#8000#00: C0ZAid0273
10:44:05.667 8AF#8000#00: C0ZAid0273er00/00
< 10:44:05.687 8AF#8000#00: C0IVid0274
10:44:06.905 8AF#8000#00: C0IVid0274er00/00
< 10:44:06.910 8AF#8000#00: C0BCid0275
10:44:07.045 8AF#8000#00: C0BCid0275er00/00
< 10:44:07.079 8AF#8000#00: C0RTid0276
10:44:07.152 8AF#8000#00: C0RTid0276er00/00rt0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
< 10:44:07.152 8AF#8000#00: C0TRid0277xp13400&yp4050 3925 3800 3675 3550 3425 3300 3175 3050 2925 2800 2675 2550 2425 2300 2175tp1970tz1870th2450te2450tm0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1ti0
10:44:14.090 8AF#8000#00: C0TRid0277er00/00kz000 000 000 000 000 000 000 000 000 000 000 000 000 000 000 377vz000 000 000 000 000 000 000 000 000 000 000 000 000 000 000 382

KarlCahill · July 8, 2025, 2:45pm

HxUsbComm20250708.trc(2/2):

< 10:44:14.090 8AF#8000#00: C0RTid0278

10:44:14.164 8AF#8000#00: C0RTid0278er00/00rt0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
< 10:44:14.189 8AF#8000#00: C0ZAid0279
10:44:14.339 8AF#8000#00: C0ZAid0279er00/00
< 10:44:14.355 8AF#8000#00: C0IVid0280
10:44:15.583 8AF#8000#00: C0IVid0280er00/00
< 10:44:15.583 8AF#8000#00: C0JEid0281
10:44:17.784 8AF#8000#00: C0JEid0281er00/00
< 10:44:17.789 8AF#8000#00: C0CPid0282cl00000000000000cb00000000000000
10:44:17.821 8AF#8000#00: C0CPid0282er00/00
< 10:44:17.821 8AF#8000#00: C0DRid0283
10:44:17.857 8AF#8000#00: C0DRid0283er00/00
< 10:44:17.857 8AF#8000#00: C0HOid0284
10:44:17.878 8AF#8000#00: C0HOid0284er00/00
< 10:44:17.878 8AF#8000#00: C0CDid0285
10:44:17.890 8AF#8000#00: C0CDid0285er00/00
< 10:44:17.890 8AF#8000#00: C0AZid0286
10:44:18.222 8AF#8000#00: C0AZid0286er00/00
< 10:44:18.239 8AF#8000#00: P1RVid0287
10:44:18.242 8AF#8000#00: P1RVid0287na0000002018nb0000002008nc0000000891nd0000002014
< 10:44:18.255 8AF#8000#00: P2RVid0288
10:44:18.274 8AF#8000#00: P2RVid0288na0000002009nb0000001999nc0000000887nd0000001981
< 10:44:18.274 8AF#8000#00: P3RVid0289
10:44:18.286 8AF#8000#00: P3RVid0289na0000002012nb0000002002nc0000000886nd0000001954
< 10:44:18.286 8AF#8000#00: P4RVid0290
10:44:18.306 8AF#8000#00: P4RVid0290na0000002014nb0000002004nc0000000885nd0000001934
< 10:44:18.306 8AF#8000#00: P5RVid0291
10:44:18.323 8AF#8000#00: P5RVid0291na0000001975nb0000001965nc0000000739nd0000000893
< 10:44:18.323 8AF#8000#00: P6RVid0292
10:44:18.333 8AF#8000#00: P6RVid0292na0000001972nb0000001962nc0000000744nd0000000899
< 10:44:18.333 8AF#8000#00: P7RVid0293
10:44:18.353 8AF#8000#00: P7RVid0293na0000002095nb0000002085nc0000000739nd0000000894
< 10:44:18.353 8AF#8000#00: P8RVid0294
10:44:18.365 8AF#8000#00: P8RVid0294na0000002153nb0000002139nc0000000759nd0000000913
< 10:44:18.365 8AF#8000#00: P9RVid0295
10:44:18.383 8AF#8000#00: P9RVid0295na0000001952nb0000001952nc0000000719nd0000000912
< 10:44:18.383 8AF#8000#00: PARVid0296
10:44:18.396 8AF#8000#00: PARVid0296na0000001923nb0000001923nc0000000704nd0000000898
< 10:44:18.396 8AF#8000#00: PBRVid0297
10:44:18.415 8AF#8000#00: PBRVid0297na0000001923nb0000001923nc0000000703nd0000000897
< 10:44:18.416 8AF#8000#00: PCRVid0298
10:44:18.430 8AF#8000#00: PCRVid0298na0000001923nb0000001923nc0000000704nd0000000898
< 10:44:18.430 8AF#8000#00: PDRVid0299
10:44:18.445 8AF#8000#00: PDRVid0299na0000001938nb0000001938nc0000000716nd0000000910
< 10:44:18.446 8AF#8000#00: PERVid0300
10:44:18.460 8AF#8000#00: PERVid0300na0000001944nb0000001944nc0000000714nd0000000908
< 10:44:18.460 8AF#8000#00: PFRVid0301
10:44:18.476 8AF#8000#00: PFRVid0301na0000001982nb0000001983nc0000000718nd0000000912
< 10:44:18.477 8AF#8000#00: PGRVid0302
10:44:18.493 8AF#8000#00: PGRVid0302na0000002057nb0000002048nc0000000775nd0000000961
< 10:44:18.494 8AF#8000#00: I0RVid0303
10:44:18.500 8AF#8000#00: I0RVid0303na0000000372
! 10:44:43.526 8AF#8000#00: USB Info: CLOSE USB_READ_THREAD
< 10:45:39.854 8AF#8000#00: C0RQid0101
10:45:39.875 8AF#8000#00: C0RQid0101rq0000
< 10:45:39.876 8AF#8000#00: C0QBid0102
10:45:39.892 8AF#8000#00: C0QBid0102er00/00qb1
< 10:45:39.892 8AF#8000#00: C0RIid0103
10:45:39.911 8AF#8000#00: C0RIid0103er00/00si2022-01-12sn212I
< 10:45:39.911 8AF#8000#00: C0QMid0104
10:45:39.943 8AF#8000#00: C0QMid0104er00/00ka000000xt54xa54xw13400xl01xr00xm03500xx11400ys090xu3540xv3700yu0060kl360kc0yx0060ke00000100xn00xo00ym6065kr0km360
< 10:45:39.943 8AF#8000#00: C0RMid0105
10:45:40.038 8AF#8000#00: C0RMid0105er00/00kb0Dkp16 C00000 X00000 P10000 P20000 P30000 P40000 P50000 P60000 P70000 P80000 P90000 PA0000 PB0000 PC0000 PD0000 PE0000 PF0000 PG0000 I00000
< 10:45:40.038 8AF#8000#00: C0RFid0106
10:45:40.060 8AF#8000#00: C0RFid0106er00/00rf7.5S 19 2020_09_04 (GRU C0)
< 10:45:40.061 8AF#8000#00: P1RFid0107
10:45:40.074 8AF#8000#00: P1RFid0107rf4.0S f 2020-07-31
< 10:45:40.074 8AF#8000#00: P1RJid0108
10:45:40.088 8AF#8000#00: P1RJid0108jd2025-05-12js1
< 10:45:40.088 8AF#8000#00: P2RFid0109
10:45:40.093 8AF#8000#00: P2RFid0109rf4.0S f 2020-07-31
< 10:45:40.093 8AF#8000#00: P2RJid0110
10:45:40.109 8AF#8000#00: P2RJid0110jd2025-05-12js1
< 10:45:40.109 8AF#8000#00: P3RFid0111
10:45:40.128 8AF#8000#00: P3RFid0111rf4.0S f 2020-07-31
< 10:45:40.128 8AF#8000#00: P3RJid0112
10:45:40.141 8AF#8000#00: P3RJid0112jd2025-05-12js1
< 10:45:40.141 8AF#8000#00: P4RFid0113
10:45:40.150 8AF#8000#00: P4RFid0113rf4.0S f 2020-07-31
< 10:45:40.156 8AF#8000#00: P4RJid0114
10:45:40.169 8AF#8000#00: P4RJid0114jd2025-05-12js1
< 10:45:40.169 8AF#8000#00: P5RFid0115
10:45:40.172 8AF#8000#00: P5RFid0115rf4.0S f 2020-07-31
< 10:45:40.172 8AF#8000#00: P5RJid0116
10:45:40.199 8AF#8000#00: P5RJid0116jd2025-05-12js1
< 10:45:40.201 8AF#8000#00: P6RFid0117
10:45:40.214 8AF#8000#00: P6RFid0117rf4.0S f 2020-07-31
< 10:45:40.214 8AF#8000#00: P6RJid0118
10:45:40.228 8AF#8000#00: P6RJid0118jd2025-05-12js1
< 10:45:40.228 8AF#8000#00: P7RFid0119
10:45:40.235 8AF#8000#00: P7RFid0119rf4.0S f 2020-07-31
< 10:45:40.235 8AF#8000#00: P7RJid0120
10:45:40.251 8AF#8000#00: P7RJid0120jd2025-05-12js1
< 10:45:40.251 8AF#8000#00: P8RFid0121
10:45:40.269 8AF#8000#00: P8RFid0121rf4.0S f 2020-07-31
< 10:45:40.269 8AF#8000#00: P8RJid0122
10:45:40.282 8AF#8000#00: P8RJid0122jd2025-05-12js1
< 10:45:40.283 8AF#8000#00: P9RFid0123
10:45:40.288 8AF#8000#00: P9RFid0123rf4.0S f 2020-07-31
< 10:45:40.288 8AF#8000#00: P9RJid0124
10:45:40.309 8AF#8000#00: P9RJid0124jd2025-05-12js1
< 10:45:40.309 8AF#8000#00: PARFid0125
10:45:40.326 8AF#8000#00: PARFid0125rf4.0S f 2020-07-31
< 10:45:40.326 8AF#8000#00: PARJid0126
10:45:40.330 8AF#8000#00: PARJid0126jd2025-05-12js1
< 10:45:40.330 8AF#8000#00: PBRFid0127
10:45:40.353 8AF#8000#00: PBRFid0127rf4.0S f 2020-07-31
< 10:45:40.353 8AF#8000#00: PBRJid0128
10:45:40.368 8AF#8000#00: PBRJid0128jd2025-05-12js1
< 10:45:40.368 8AF#8000#00: PCRFid0129
10:45:40.381 8AF#8000#00: PCRFid0129rf4.0S f 2020-07-31
< 10:45:40.381 8AF#8000#00: PCRJid0130
10:45:40.395 8AF#8000#00: PCRJid0130jd2025-05-12js1
< 10:45:40.395 8AF#8000#00: PDRFid0131
10:45:40.395 8AF#8000#00: PDRFid0131rf4.0S f 2020-07-31
< 10:45:40.409 8AF#8000#00: PDRJid0132
10:45:40.409 8AF#8000#00: PDRJid0132jd2025-05-12js1
< 10:45:40.409 8AF#8000#00: PERFid0133
10:45:40.436 8AF#8000#00: PERFid0133rf4.0S f 2020-07-31
< 10:45:40.436 8AF#8000#00: PERJid0134
10:45:40.451 8AF#8000#00: PERJid0134jd2025-05-12js1
< 10:45:40.451 8AF#8000#00: PFRFid0135
10:45:40.464 8AF#8000#00: PFRFid0135rf4.0S f 2020-07-31
< 10:45:40.464 8AF#8000#00: PFRJid0136
10:45:40.472 8AF#8000#00: PFRJid0136jd2025-05-12js1
< 10:45:40.472 8AF#8000#00: PGRFid0137
10:45:40.488 8AF#8000#00: PGRFid0137rf4.0S f 2020-07-31
< 10:45:40.488 8AF#8000#00: PGRJid0138
10:45:40.504 8AF#8000#00: PGRJid0138jd2025-05-12js1
< 10:45:40.504 8AF#8000#00: C0QBid0139
10:45:40.521 8AF#8000#00: C0QBid0139er00/00qb1
< 10:45:40.521 8AF#8000#00: X0RFid0140
10:45:40.521 8AF#8000#00: X0RFid0140rf1.4S 2012-04-25
< 10:45:40.521 8AF#8000#00: X0RJid0141
10:45:40.536 8AF#8000#00: X0RJid0141jd2025-05-12js1
< 10:45:40.536 8AF#8000#00: I0RFid0142
10:45:40.559 8AF#8000#00: I0RFid0142rf3.4S e 2016-05-02
< 10:45:40.559 8AF#8000#00: I0RJid0143
10:45:40.569 8AF#8000#00: I0RJid0143jd2022-01-12js1
< 10:45:40.569 8AF#8000#00: C0RMid0144
10:45:40.664 8AF#8000#00: C0RMid0144er00/00kb0Dkp16 C00000 X00000 P10000 P20000 P30000 P40000 P50000 P60000 P70000 P80000 P90000 PA0000 PB0000 PC0000 PD0000 PE0000 PF0000 PG0000 I00000
< 10:45:40.679 8AF#8000#00: C0QMid0145
10:45:40.711 8AF#8000#00: C0QMid0145er00/00ka000000xt54xa54xw13400xl01xr00xm03500xx11400ys090xu3540xv3700yu0060kl360kc0yx0060ke00000100xn00xo00ym6065kr0km360
< 10:45:40.727 8AF#8000#00: C0SRid0146
10:45:40.747 8AF#8000#00: C0SRid0146er00/00sr055
< 10:45:40.779 8AF#8000#00: C0RUid0147
10:45:40.810 8AF#8000#00: C0RUid0147er00/00ru00950 13400 30000 30000
< 10:45:47.063 8AF#8000#00: C0RVid0148vo00
10:45:47.113 8AF#8000#00: C0RVid0148er00/00vd2025-06-30 10:25vs0
< 10:45:47.126 8AF#8000#00: C0RVid0149vo01
10:45:47.174 8AF#8000#00: C0RVid0149er00/00vd2025-05-12 15:34vs1
< 10:45:47.190 8AF#8000#00: C0RVid0150vo05
10:45:47.241 8AF#8000#00: C0RVid0150er00/00vd2023-03-11 23:59vs1
< 10:45:47.241 8AF#8000#00: C0RSid0151
10:45:47.259 8AF#8000#00: C0RSid0151er00/00ts2025-06-30 10:30
< 10:45:47.270 8AF#8000#00: C0RIid0152
10:45:47.286 8AF#8000#00: C0RIid0152er00/00si2022-01-12sn212I
< 10:45:47.286 8AF#8000#00: C0RMid0153
10:45:47.367 8AF#8000#00: C0RMid0153er00/00kb0Dkp16 C00000 X00000 P10000 P20000 P30000 P40000 P50000 P60000 P70000 P80000 P90000 PA0000 PB0000 PC0000 PD0000 PE0000 PF0000 PG0000 I00000
< 10:45:47.383 8AF#8000#00: P1RVid0154
10:45:47.403 8AF#8000#00: P1RVid0154na0000002018nb0000002008nc0000000891nd0000002014
< 10:45:47.404 8AF#8000#00: P2RVid0155
10:45:47.419 8AF#8000#00: P2RVid0155na0000002009nb0000001999nc0000000887nd0000001981
< 10:45:47.419 8AF#8000#00: P3RVid0156
10:45:47.434 8AF#8000#00: P3RVid0156na0000002012nb0000002002nc0000000886nd0000001954
< 10:45:47.434 8AF#8000#00: P4RVid0157
10:45:47.446 8AF#8000#00: P4RVid0157na0000002014nb0000002004nc0000000885nd0000001934
< 10:45:47.446 8AF#8000#00: P5RVid0158
10:45:47.462 8AF#8000#00: P5RVid0158na0000001975nb0000001965nc0000000739nd0000000893
< 10:45:47.462 8AF#8000#00: P6RVid0159
10:45:47.485 8AF#8000#00: P6RVid0159na0000001972nb0000001962nc0000000744nd0000000899
< 10:45:47.485 8AF#8000#00: P7RVid0160
10:45:47.499 8AF#8000#00: P7RVid0160na0000002095nb0000002085nc0000000739nd0000000894
< 10:45:47.499 8AF#8000#00: P8RVid0161
10:45:47.520 8AF#8000#00: P8RVid0161na0000002153nb0000002139nc0000000759nd0000000913
< 10:45:47.520 8AF#8000#00: P9RVid0162
10:45:47.538 8AF#8000#00: P9RVid0162na0000001952nb0000001952nc0000000719nd0000000912
< 10:45:47.538 8AF#8000#00: PARVid0163
10:45:47.542 8AF#8000#00: PARVid0163na0000001923nb0000001923nc0000000704nd0000000898
< 10:45:47.558 8AF#8000#00: PBRVid0164
10:45:47.573 8AF#8000#00: PBRVid0164na0000001923nb0000001923nc0000000703nd0000000897
< 10:45:47.575 8AF#8000#00: PCRVid0165
10:45:47.591 8AF#8000#00: PCRVid0165na0000001923nb0000001923nc0000000704nd0000000898
< 10:45:47.592 8AF#8000#00: PDRVid0166
10:45:47.606 8AF#8000#00: PDRVid0166na0000001938nb0000001938nc0000000716nd0000000910
< 10:45:47.607 8AF#8000#00: PERVid0167
10:45:47.620 8AF#8000#00: PERVid0167na0000001944nb0000001944nc0000000714nd0000000908
< 10:45:47.620 8AF#8000#00: PFRVid0168
10:45:47.637 8AF#8000#00: PFRVid0168na0000001982nb0000001983nc0000000718nd0000000912
< 10:45:47.638 8AF#8000#00: PGRVid0169
10:45:47.653 8AF#8000#00: PGRVid0169na0000002057nb0000002048nc0000000775nd0000000961
< 10:45:47.653 8AF#8000#00: P1VWid0170
10:45:47.664 8AF#8000#00: P1VWid0170vw0 0
< 10:45:47.668 8AF#8000#00: P2VWid0171
10:45:47.681 8AF#8000#00: P2VWid0171vw0 0
< 10:45:47.681 8AF#8000#00: P3VWid0172
10:45:47.684 8AF#8000#00: P3VWid0172vw0 0
< 10:45:47.684 8AF#8000#00: P4VWid0173
10:45:47.700 8AF#8000#00: P4VWid0173vw0 0
< 10:45:47.700 8AF#8000#00: P5VWid0174
10:45:47.721 8AF#8000#00: P5VWid0174vw0 0
< 10:45:47.721 8AF#8000#00: P6VWid0175
10:45:47.739 8AF#8000#00: P6VWid0175vw0 0
< 10:45:47.739 8AF#8000#00: P7VWid0176
10:45:47.748 8AF#8000#00: P7VWid0176vw0 0
< 10:45:47.748 8AF#8000#00: P8VWid0177
10:45:47.768 8AF#8000#00: P8VWid0177vw0 0
< 10:45:47.768 8AF#8000#00: P9VWid0178
10:45:47.782 8AF#8000#00: P9VWid0178vw0 0
< 10:45:47.782 8AF#8000#00: PAVWid0179
10:45:47.789 8AF#8000#00: PAVWid0179vw0 0
< 10:45:47.797 8AF#8000#00: PBVWid0180
10:45:47.797 8AF#8000#00: PBVWid0180vw0 0
< 10:45:47.813 8AF#8000#00: PCVWid0181
10:45:47.825 8AF#8000#00: PCVWid0181vw0 0
< 10:45:47.825 8AF#8000#00: PDVWid0182
10:45:47.833 8AF#8000#00: PDVWid0182vw0 0
< 10:45:47.833 8AF#8000#00: PEVWid0183
10:45:47.845 8AF#8000#00: PEVWid0183vw0 0
< 10:45:47.845 8AF#8000#00: PFVWid0184
10:45:47.870 8AF#8000#00: PFVWid0184vw0 0
< 10:45:47.870 8AF#8000#00: PGVWid0185
10:45:47.885 8AF#8000#00: PGVWid0185vw0 0
< 10:45:47.908 8AF#8000#00: C0TTid0186tt44tf1tl0570tv01750tg3tu0
10:45:47.943 8AF#8000#00: C0TTid0186er00/00
< 10:45:47.943 8AF#8000#00: C0TTid0187tt33tf0tl0319tv00700tg6tu0
10:45:47.979 8AF#8000#00: C0TTid0187er00/00
< 10:45:47.994 8AF#8000#00: C0TTid0188tt22tf0tl0424tv00650tg2tu0
10:45:48.023 8AF#8000#00: C0TTid0188er00/00
< 10:45:48.023 8AF#8000#00: C0TTid0189tt11tf0tl0490tv00150tg2tu1
10:45:48.057 8AF#8000#00: C0TTid0189er00/00
< 10:45:48.069 8AF#8000#00: C0TTid0190tt03tf1tl0219tv00100tg1tu0
10:45:48.105 8AF#8000#00: C0TTid0190er00/00
< 10:45:48.117 8AF#8000#00: C0TTid0191tt45tf1tl0870tv03450tg3tu0
10:45:48.147 8AF#8000#00: C0TTid0191er00/00
< 10:45:48.162 8AF#8000#00: C0TTid0192tt34tf0tl0235tv00010tg2tu0
10:45:48.189 8AF#8000#00: C0TTid0192er00/00
< 10:45:48.198 8AF#8000#00: C0TTid0193tt23tf1tl0424tv00600tg2tu0
10:45:48.232 8AF#8000#00: C0TTid0193er00/00
< 10:45:48.232 8AF#8000#00: C0TTid0194tt12tf0tl0490tv03500tg2tu1
10:45:48.265 8AF#8000#00: C0TTid0194er00/00
< 10:45:48.277 8AF#8000#00: C0TTid0195tt04tf0tl0871tv12500tg3tu0
10:45:48.314 8AF#8000#00: C0TTid0195er00/00
< 10:45:48.330 8AF#8000#00: C0TTid0196tt46tf0tl0290tv17200tg3tu1
10:45:48.356 8AF#8000#00: C0TTid0196er00/00
< 10:45:48.373 8AF#8000#00: C0TTid0197tt35tf0tl0570tv03500tg3tu0
10:45:48.388 8AF#8000#00: C0TTid0197er00/00
< 10:45:48.403 8AF#8000#00: C0TTid0198tt24tf0tl0820tv01800tg3tu1
10:45:48.435 8AF#8000#00: C0TTid0198er00/00
< 10:45:48.458 8AF#8000#00: C0TTid0199tt13tf0tl0820tv12500tg3tu1
10:45:48.485 8AF#8000#00: C0TTid0199er00/00
< 10:45:48.498 8AF#8000#00: C0TTid0200tt05tf1tl0871tv10650tg3tu0
10:45:48.514 8AF#8000#00: C0TTid0200er00/00
< 10:45:48.542 8AF#8000#00: C0TTid0201tt47tf0tl0465tv00010tg2tu0
10:45:48.569 8AF#8000#00: C0TTid0201er00/00
< 10:45:48.586 8AF#8000#00: C0TTid0202tt36tf0tl0870tv03850tg3tu0
10:45:48.612 8AF#8000#00: C0TTid0202er00/00
< 10:45:48.625 8AF#8000#00: C0TTid0203tt25tf0tl1080tv54200tg5tu0
10:45:48.641 8AF#8000#00: C0TTid0203er00/00
< 10:45:48.664 8AF#8000#00: C0TTid0204tt14tf0tl0220tv00010tg0tu0
10:45:48.689 8AF#8000#00: C0TTid0204er00/00
< 10:45:48.706 8AF#8000#00: C0TTid0205tt06tf0tl0519tv00700tg2tu1
10:45:48.725 8AF#8000#00: C0TTid0205er00/00
< 10:45:48.736 8AF#8000#00: C0TTid0206tt48tf0tl0829tv08000tg3tu1
10:45:48.768 8AF#8000#00: C0TTid0206er00/00
< 10:45:48.786 8AF#8000#00: C0TTid0207tt37tf0tl0319tv00700tg6tu0
10:45:48.799 8AF#8000#00: C0TTid0207er00/00
< 10:45:48.825 8AF#8000#00: C0TTid0208tt26tf0tl1080tv00010tg5tu0
10:45:48.848 8AF#8000#00: C0TTid0208er00/00
< 10:45:48.864 8AF#8000#00: C0TTid0209tt15tf0tl0256tv00350tg4tu0
10:45:48.899 8AF#8000#00: C0TTid0209er00/00
< 10:45:48.912 8AF#8000#00: C0TTid0210tt07tf0tl0519tv03500tg2tu1
10:45:48.940 8AF#8000#00: C0TTid0210er00/00
< 10:45:48.944 8AF#8000#00: C0TTid0211tt49tf0tl0820tv03020tg3tu1
10:45:48.975 8AF#8000#00: C0TTid0211er00/00
< 10:45:48.991 8AF#8000#00: C0TTid0212tt38tf0tl0490tv00650tg2tu1
10:45:49.023 8AF#8000#00: C0TTid0212er00/00
< 10:45:49.023 8AF#8000#00: C0TTid0213tt27tf0tl0190tv00010tg0tu0
10:45:49.060 8AF#8000#00: C0TTid0213er00/00
< 10:45:49.078 8AF#8000#00: C0TTid0214tt16tf0tl0251tv00350tg0tu0
10:45:49.107 8AF#8000#00: C0TTid0214er00/00
< 10:45:49.124 8AF#8000#00: C0TTid0215tt08tf0tl0871tv12500tg3tu1
10:45:49.142 8AF#8000#00: C0TTid0215er00/00
< 10:45:49.164 8AF#8000#00: C0TTid0216tt39tf0tl0820tv01200tg3tu1
10:45:49.192 8AF#8000#00: C0TTid0216er00/00
< 10:45:49.200 8AF#8000#00: C0TTid0217tt28tf0tl0626tv04000tg6tu0
10:45:49.232 8AF#8000#00: C0TTid0217er00/00
< 10:45:49.232 8AF#8000#00: C0TTid0218tt17tf0tl0251tv00350tg0tu0
10:45:49.274 8AF#8000#00: C0TTid0218er00/00
< 10:45:49.280 8AF#8000#00: C0TTid0219tt29tf1tl1080tv43670tg5tu0
10:45:49.311 8AF#8000#00: C0TTid0219er00/00
< 10:45:49.327 8AF#8000#00: C0TTid0220tt18tf1tl0210tv12500tg0tu1
10:45:49.358 8AF#8000#00: C0TTid0220er00/00
< 10:45:49.359 8AF#8000#00: C0TTid0221tt19tf0tl0534tv00670tg2tu0
10:45:49.396 8AF#8000#00: C0TTid0221er00/00
< 10:45:49.406 8AF#8000#00: C0TTid0222tt50tf0tl0820tv08000tg3tu1
10:45:49.445 8AF#8000#00: C0TTid0222er00/00
< 10:45:49.454 8AF#8000#00: C0TTid0223tt51tf0tl0111tv00010tg0tu0
10:45:49.486 8AF#8000#00: C0TTid0223er00/00
< 10:45:49.486 8AF#8000#00: C0TTid0224tt40tf0tl0820tv02000tg3tu1
10:45:49.527 8AF#8000#00: C0TTid0224er00/00
< 10:45:49.543 8AF#8000#00: C0TTid0225tt52tf0tl0430tv00010tg0tu0
10:45:49.567 8AF#8000#00: C0TTid0225er00/00
< 10:45:49.585 8AF#8000#00: C0TTid0226tt41tf0tl0820tv03460tg3tu1
10:45:49.612 8AF#8000#00: C0TTid0226er00/00
< 10:45:49.625 8AF#8000#00: C0TTid0227tt30tf0tl0519tv04000tg2tu0
10:45:49.644 8AF#8000#00: C0TTid0227er00/00
< 10:45:49.668 8AF#8000#00: C0TTid0228tt00tf0tl0519tv04000tg2tu0
10:45:49.690 8AF#8000#00: C0TTid0228er00/00
< 10:45:49.709 8AF#8000#00: C0TTid0229tt53tf0tl0485tv35000tg0tu0
10:45:49.737 8AF#8000#00: C0TTid0229er00/00
< 10:45:49.737 8AF#8000#00: C0TTid0230tt42tf0tl0490tv03550tg2tu1
10:45:49.775 8AF#8000#00: C0TTid0230er00/00
< 10:45:49.785 8AF#8000#00: C0TTid0231tt31tf0tl0422tv00650tg2tu0
10:45:49.820 8AF#8000#00: C0TTid0231er00/00
< 10:45:49.832 8AF#8000#00: C0TTid0232tt20tf0tl0343tv00650tg4tu0
10:45:49.860 8AF#8000#00: C0TTid0232er00/00
< 10:45:49.864 8AF#8000#00: C0TTid0233tt01tf1tl0519tv03600tg2tu0
10:45:49.904 8AF#8000#00: C0TTid0233er00/00
< 10:45:49.913 8AF#8000#00: C0TTid0234tt43tf0tl0820tv11350tg3tu1
10:45:49.947 8AF#8000#00: C0TTid0234er00/00
< 10:45:49.961 8AF#8000#00: C0TTid0235tt32tf0tl0219tv00150tg1tu0
10:45:49.988 8AF#8000#00: C0TTid0235er00/00
< 10:45:50.002 8AF#8000#00: C0TTid0236tt21tf0tl0442tv00610tg6tu1
10:45:50.024 8AF#8000#00: C0TTid0236er00/00
< 10:45:50.042 8AF#8000#00: C0TTid0237tt10tf0tl0519tv04000tg2tu0
10:45:50.061 8AF#8000#00: C0TTid0237er00/00
< 10:45:50.072 8AF#8000#00: C0TTid0238tt02tf0tl0219tv00150tg1tu0
10:45:50.112 8AF#8000#00: C0TTid0238er00/00
< 10:45:50.114 8AF#8000#00: C0DRid0239
10:45:50.120 8AF#8000#00: C0DRid0239er00/00
< 10:45:50.136 8AF#8000#00: C0CUid0240cu0
10:45:50.156 8AF#8000#00: C0CUid0240er00/00
< 10:45:50.158 8AF#8000#00: C0CEid0241
10:45:50.167 8AF#8000#00: C0CEid0241er00/00
< 10:45:50.184 8AF#8000#00: C0QCid0242
10:45:50.204 8AF#8000#00: C0QCid0242er00/00qc1
< 10:45:50.204 8AF#8000#00: C0AWid0243
10:45:50.578 8AF#8000#00: C0AWid0243er00/00
< 10:45:50.581 8AF#8000#00: PXAFid0244af0
10:45:50.729 8AF#8000#00: PXAFid0244er00
< 10:45:50.739 8AF#8000#00: C0QSid0245
10:45:50.807 8AF#8000#00: C0QSid0245er00/00qs0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
< 10:45:50.819 8AF#8000#00: C0RJid0246
10:45:50.882 8AF#8000#00: C0RJid0246er00/00tq1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
< 10:45:50.882 8AF#8000#00: C0AWid0247
10:45:51.268 8AF#8000#00: C0AWid0247er00/00
< 10:45:51.268 8AF#8000#00: C0CPid0248cl00000000000000cb00000000000000
10:45:51.312 8AF#8000#00: C0CPid0248er00/00
< 10:45:51.312 8AF#8000#00: C0CBid0249bt7Fmq00
10:45:51.350 8AF#8000#00: C0CBid0249er00/00
< 10:45:51.475 8AF#8000#00: C0QWid0250
10:45:51.552 8AF#8000#00: C0QWid0250er00/00qw1
< 10:45:51.564 8AF#8000#00: C0RTid0251
10:45:51.628 8AF#8000#00: C0RTid0251er00/00rt0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
< 10:45:51.673 8AF#8000#00: C0RTid0252
10:45:51.740 8AF#8000#00: C0RTid0252er00/00rt0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
< 10:45:51.758 8AF#8000#00: C0RTid0253
10:45:51.829 8AF#8000#00: C0RTid0253er00/00rt0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
< 10:45:51.867 8AF#8000#00: C0TPid0254xp00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 10404yp0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 2418tm0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1tt05tp2264tz2164th2450td1
10:45:58.214 8AF#8000#00: C0TPid0254er99/00 PG08/75sx000 000 000 000 000 000 000 000 000 000 000 000 000 000 000 466sg000 000 000 000 000 000 000 000 000 000 000 000 000 000 000 000
< 10:45:58.214 8AF#8000#00: C0RTid0255
10:45:58.286 8AF#8000#00: C0RTid0255er00/00rt0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
< 10:46:12.230 8AF#8000#00: C0TPid0256xp00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 10404yp0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 2418tm0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1tt05tp2264tz2164th2450td1
10:46:17.574 8AF#8000#00: C0TPid0256er00/00sx000 000 000 000 000 000 000 000 000 000 000 000 000 000 000 466sg000 000 000 000 000 000 000 000 000 000 000 000 000 000 000 494
< 10:46:17.579 8AF#8000#00: C0RTid0257
10:46:17.651 8AF#8000#00: C0RTid0257er00/00rt0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
< 10:46:17.673 8AF#8000#00: C0RTid0258
10:46:17.758 8AF#8000#00: C0RTid0258er00/00rt0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
< 10:46:17.965 8AF#8000#00: C0ASid0259at0&tm0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1xp00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 02800yp0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 1460th2450te2450lp2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 1996ch000&zl2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 1871zx0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 1871ip0020&it0&fp0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0004av00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00133as2500&ta050&ba0400&oa000&lm1&ll2&lv1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 4ld00&de0020&wt10&mv00000&mc00&mp000&ms2500&gi000&gj0gk0zu0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0031zr00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 06180mh0000&zo005&po0050&lk0&ik0000&sd0500&se0500&sz0300&io0000&il00000&in0000&
10:46:27.626 8AF#8000#00: C0ASid0259er00/00
< 10:46:27.862 8AF#8000#00: C0DSid0260dm0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1tm0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1xp00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 02890yp0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 1460zx0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 1871lp2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 1996zl2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 1921ip0000&it0&fp0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0004th2450te2450dv00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00133ds4000&ss2500&rv000&ta050&ba0400&lm0&zo005&ll1&lv1&de0010&mv00000&mc00&mp000&ms0010&wt00&gi000&gj0gk0zu0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0031dj00zr00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 00000 06180mh0000&po0050&
10:46:31.283 8AF#8000#00: C0DSid0260er00/00
< 10:46:31.394 8AF#8000#00: C0CEid0261
10:46:31.408 8AF#8000#00: C0CEid0261er00/00
< 10:46:31.424 8AF#8000#00: C0QCid0262
10:46:31.443 8AF#8000#00: C0QCid0262er00/00qc1
< 10:46:31.449 8AF#8000#00: C0AWid0263
10:46:31.816 8AF#8000#00: C0AWid0263er00/00
< 10:46:31.818 8AF#8000#00: C0AWid0264
10:46:32.188 8AF#8000#00: C0AWid0264er00/00
< 10:46:32.201 8AF#8000#00: C0RTid0265
10:46:32.288 8AF#8000#00: C0RTid0265er00/00rt0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
< 10:46:32.309 8AF#8000#00: C0ZAid0266
10:46:32.569 8AF#8000#00: C0ZAid0266er00/00
< 10:46:32.569 8AF#8000#00: C0IVid0267
10:46:33.795 8AF#8000#00: C0IVid0267er00/00
< 10:46:42.196 8AF#8000#00: C0BCid0268
10:46:42.335 8AF#8000#00: C0BCid0268er00/00
< 10:46:42.357 8AF#8000#00: C0RTid0269
10:46:42.432 8AF#8000#00: C0RTid0269er00/00rt0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
< 10:46:42.437 8AF#8000#00: C0TRid0270xp13400&yp4050 3925 3800 3675 3550 3425 3300 3175 3050 2925 2800 2675 2550 2425 2300 2175tp1970tz1870th2450te2450tm0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1ti0
10:46:50.469 8AF#8000#00: C0TRid0270er00/00kz000 000 000 000 000 000 000 000 000 000 000 000 000 000 000 377vz000 000 000 000 000 000 000 000 000 000 000 000 000 000 000 381
< 10:46:50.469 8AF#8000#00: C0RTid0271
10:46:50.545 8AF#8000#00: C0RTid0271er00/00rt0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
< 10:46:50.555 8AF#8000#00: C0ZAid0272
10:46:50.715 8AF#8000#00: C0ZAid0272er00/00
< 10:46:50.715 8AF#8000#00: C0IVid0273
10:46:51.936 8AF#8000#00: C0IVid0273er00/00
< 10:46:51.936 8AF#8000#00: C0JEid0274
10:46:53.334 8AF#8000#00: C0JEid0274er00/00
< 10:46:53.347 8AF#8000#00: C0CPid0275cl00000000000000cb00000000000000
10:46:53.379 8AF#8000#00: C0CPid0275er00/00
< 10:46:53.387 8AF#8000#00: C0DRid0276
10:46:53.398 8AF#8000#00: C0DRid0276er00/00
< 10:46:53.411 8AF#8000#00: C0HOid0277
10:46:53.427 8AF#8000#00: C0HOid0277er00/00
< 10:46:53.429 8AF#8000#00: C0CDid0278
10:46:53.443 8AF#8000#00: C0CDid0278er00/00
< 10:46:53.443 8AF#8000#00: C0AZid0279
10:46:53.782 8AF#8000#00: C0AZid0279er00/00
< 10:46:53.782 8AF#8000#00: P1RVid0280
10:46:53.798 8AF#8000#00: P1RVid0280na0000002018nb0000002008nc0000000891nd0000002014
< 10:46:53.799 8AF#8000#00: P2RVid0281
10:46:53.813 8AF#8000#00: P2RVid0281na0000002009nb0000001999nc0000000887nd0000001981
< 10:46:53.813 8AF#8000#00: P3RVid0282
10:46:53.826 8AF#8000#00: P3RVid0282na0000002012nb0000002002nc0000000886nd0000001954
< 10:46:53.826 8AF#8000#00: P4RVid0283
10:46:53.845 8AF#8000#00: P4RVid0283na0000002014nb0000002004nc0000000885nd0000001934
< 10:46:53.845 8AF#8000#00: P5RVid0284
10:46:53.862 8AF#8000#00: P5RVid0284na0000001975nb0000001965nc0000000739nd0000000893
< 10:46:53.862 8AF#8000#00: P6RVid0285
10:46:53.878 8AF#8000#00: P6RVid0285na0000001972nb0000001962nc0000000744nd0000000899
< 10:46:53.878 8AF#8000#00: P7RVid0286
10:46:53.890 8AF#8000#00: P7RVid0286na0000002095nb0000002085nc0000000739nd0000000894
< 10:46:53.890 8AF#8000#00: P8RVid0287
10:46:53.910 8AF#8000#00: P8RVid0287na0000002153nb0000002139nc0000000759nd0000000913
< 10:46:53.910 8AF#8000#00: P9RVid0288
10:46:53.926 8AF#8000#00: P9RVid0288na0000001952nb0000001952nc0000000719nd0000000912
< 10:46:53.926 8AF#8000#00: PARVid0289
10:46:53.942 8AF#8000#00: PARVid0289na0000001923nb0000001923nc0000000704nd0000000898
< 10:46:53.942 8AF#8000#00: PBRVid0290
10:46:53.953 8AF#8000#00: PBRVid0290na0000001923nb0000001923nc0000000703nd0000000897
< 10:46:53.953 8AF#8000#00: PCRVid0291
10:46:53.969 8AF#8000#00: PCRVid0291na0000001923nb0000001923nc0000000704nd0000000898
< 10:46:53.969 8AF#8000#00: PDRVid0292
10:46:53.990 8AF#8000#00: PDRVid0292na0000001938nb0000001938nc0000000716nd0000000910
< 10:46:53.991 8AF#8000#00: PERVid0293
10:46:54.006 8AF#8000#00: PERVid0293na0000001944nb0000001944nc0000000714nd0000000908
< 10:46:54.006 8AF#8000#00: PFRVid0294
10:46:54.022 8AF#8000#00: PFRVid0294na0000001982nb0000001983nc0000000718nd0000000912
< 10:46:54.022 8AF#8000#00: PGRVid0295
10:46:54.037 8AF#8000#00: PGRVid0295na0000002059nb0000002049nc0000000776nd0000000962
< 10:46:54.037 8AF#8000#00: I0RVid0296
10:46:54.048 8AF#8000#00: I0RVid0296na0000000372
< 10:48:15.541 8AF#8000#00: C0QAid0297
10:48:15.577 8AF#8000#00: C0QAid0297er00/00qa01
< 10:48:15.577 8AF#8000#00: C0RXid0298
10:48:15.610 8AF#8000#00: C0RXid0298er00/00rx+13400
< 10:48:15.611 8AF#8000#00: C0RUid0299
10:48:15.636 8AF#8000#00: C0RUid0299er00/00ru00950 13400 30000 30000
< 10:48:15.636 8AF#8000#00: C0HOid0300
10:48:15.665 8AF#8000#00: C0HOid0300er00/00
< 10:48:15.667 8AF#8000#00: C0CDid0301
10:48:15.683 8AF#8000#00: C0CDid0301er00/00
< 10:48:17.821 8AF#8000#00: C0HOid0302
10:48:17.844 8AF#8000#00: C0HOid0302er00/00
< 10:48:17.844 8AF#8000#00: C0CDid0303
10:48:17.853 8AF#8000#00: C0CDid0303er00/00
! 10:52:48.735 8AF#8000#00: USB Info: DEVICE_REMOVE_COMPLETE: \?\USB#VID_08AF&PID_8000#00#{bd0dab87-838b-44c5-a114-1cba5be0e45f}
! 10:52:48.822 8AF#8000#00: USB Info: ABORT_PIPE
! 10:52:48.823 8AF#8000#00: While reading from USBIO Driver: An error occurred while running Vector. The error description is: Error code 0xE0000011: HC Error: XACT error. (0x33 - 0x1 - 0x0)

rickwierenga · July 8, 2025, 6:57pm

fixed

rickwierenga · July 8, 2025, 10:45pm

thank you for sharing all that information.

the venus script you are running appears to be different from the PLR script:
- the venus log is using 15 channels, the PLR tracebacks are 13 and 14 channels
- in the 13 channel PLR firmware command (timeout): i see the y-parameter is 146.0mm (for the 13 channel one, we don’t know for 14) whereas in venus it is 405mm. (this should not make a difference since the front channels should be to access the front of the robot, but something to keep in mind)
to clearly see where things are going wrong, could you please share the validation.json for channels 12 (works), 13 (timeout), 14 (error), 16 (error)?

KarlCahill · July 9, 2025, 9:32am

Hi Rick, thanks again!

Sorry for the confusion with running the different channels. I ran the aspiration again with the venus for channels 12,13,14,15 (0 based indexed) numbered 13,14,15,16 in venus.

I am permitted to upload .txt files now but get the error:
“Sorry, new users can not upload attachments.”

I couldent quite get the capture function to work to write to the JSON file. could you confirm that i am using it correctly in the script posted previously (post 5)

CamilloMoschner · July 9, 2025, 4:11pm

@KarlCahill, in the absence of the validation.json, could you please share this run’s .tcr file (containing the firmware log)?

Here is some more info from the documents Hamilton made freely available via the labautomation forum:

and here is an infographic I just generated that shows details of what the above is referring to with specific y-coordinates accessible by different channel configurations

Note: this shows “random access space”. It does not show what the range of each individual channel is!
I will also generate a table that shows the y-range for each specific channel in the next couple of days which should help us with this (and we can then add to the PLR docs )

rickwierenga · July 9, 2025, 6:00pm

ah, so there were two problems

txt and json were not allowed file types for upload
you were still a new user (i upgraded your trust level)

KarlCahill · July 10, 2025, 8:16am

Thanks alot guys!

Here is the .trc file from the venus logfile from when i run the channels 12,13,14,15 yesterday. All ran sucsesfully with the venus software.

HxUsbComm20250709.txt (113.4 KB)

Here is the layout from the hamilton:

I tested the same channels with pylabrobot, and the issues for the last three cahnnels persisted, parameter out of range for 14,15 and timeout error with channel 13. channel 12 works fine.

The channels that gives these errors when aspirating are able to pick up tips fine in the outer most and second outermost positions “TIP_CAR_480_A00[0]” and “TIP_CAR_480_A00” from all positions A-H. This indicates that the random acsess space for the y dimension is fine for for these channels.

I still havent figured out how to get the “capture” to work to the JSON file. Is there an alternative way we can print or extract the commands sent similar to the .trc file for pylabrobot?

CamilloMoschner · July 10, 2025, 10:14am

@KarlCahill, yes: PLR automatically generates a log file too. You just have to choose what you want to capture by choosing the the log level.

Add the following at the beginning of your script:

from pylabrobot.io.validation_utils import LOG_LEVEL_IO

logger = logging.getLogger("pylabrobot")
logger.setLevel(LOG_LEVEL_IO) # <-- choose a level

This was (relatively) recently changed, please let us know whether you can see the PLR-generated log file in the same directory as your script.

KarlCahill · July 10, 2025, 12:10pm

Fantastic, thanks for the update, i managed to use the capture command now!

The Capture worked correctly for channel 12 which can aspirate without an error:
channel_12_test.txt (6.4 KB)

For the failed aspiration test it could not write into the JSON with the capture function. I instead managed to find the commands sent through the “pylabrobot_io_log.json”. I organized them by into files of the respective tests, also including the cahannel 12 again that worked correctly:

channel_12_test_from_log.txt (10.3 KB)
channel_13_test_from_log.txt (9.8 KB)
channel_14_test_from_log.txt (7.8 KB)
channel_15_test_from_log.txt (7.3 KB)

I hope this gives the insight you need, let me know if i should run more tests. and thanks again!

KarlCahill · July 21, 2025, 9:08am

Hey guys,
Any idea how to trouble shoot further or ideas to solve the problem?

Best regards
Karl

HamiltonStar 16 Channel Aspiration Error

=== printlog (channel 0) === Rail Resource Type Coordinates (mm)

Script completed.

Rail Resource Type Coordinates (mm)

Script completed.

=== printlog (channel 14) === Rail Resource Type Coordinates (mm)

Script completed.

=== printlog (channel 0) ===
Rail Resource Type Coordinates (mm)

=== printlog (channel 14) ===
Rail Resource Type Coordinates (mm)
