Maintenance scripts for STAR(let)s?

agar · July 21, 2025, 6:27pm

yes, the Venus daily maintenance macro. Unfortunately I don’t have access to the software myself - this was discovered during PM

I think it’d be helpful to determine the full set of tests the macro runs and then replicate each of those - maybe in collab w Hamilton?

rickwierenga · July 21, 2025, 6:30pm

perhaps related, i recently started adding some qc scripts for the STAR pylabrobot/tools/qc/hamilton at main · PyLabRobot/pylabrobot · GitHub. it is very early stage. see background in PR 599

i will take a look at the daily maintenance script. i think it should be easy to convert to PLR

CamilloMoschner · July 21, 2025, 6:32pm

We just have to bite our way through a good chunk of HSL for the logic part

rickwierenga · July 21, 2025, 6:33pm

HSL → Python/PLR convertor?

CamilloMoschner · July 21, 2025, 6:43pm

I don’t think we have to go quite that far, that sounds like a nightmare since I am not aware of any syntax documentation for HSL?

If I find some time I’d just read the logic, identify the parameter ranges for acceptance and recreate the measurement commands from the trc file?

JDesRo · July 22, 2025, 6:47pm

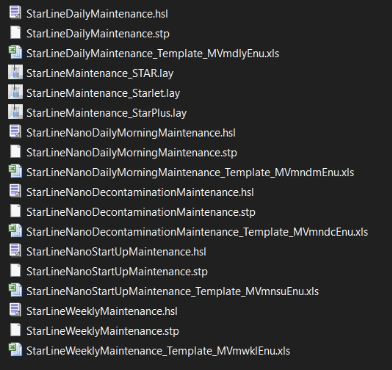

I was working in the macro programming language and I had my friend Claude take a quick look at some maintenance logs. Below is the logic and some tips for implementing into PyLabRobot.

I didn’t make the changes/additions myself because I’m not all that comfortable with it at this point.

Hope this helps!

Hamilton STARlet Weekly Maintenance Process Analysis

PyLabRobot Conversion Project Overview

Date: 2025-01-14
System: Hamilton Microlab STARlet (Serial: XXXX)
Software: Phoenix 4.5.0.7977 / STARlet 4.5.0.5217
Firmware: C0 Master 7.6S, P1/P2 Channels 4.0S, X0 Drive 1.4S

Executive Summary

This document analyzes the Hamilton STARlet weekly maintenance process to enable PyLabRobot implementation. The maintenance involves system initialization, user-guided cleaning procedures, pressure tightness testing, and liquid level detection verification.

System Architecture

Hardware Configuration

Main Controller (C0): Master module controlling system coordination
Pipetting Channels (P1/P2): Two 1000μl channels with pressure sensors
X-Drive (X0): Horizontal positioning system
Teaching Needles: Special maintenance tools for pressure testing

Communication Protocol

High-Level: Hamilton Phoenix software commands
Low-Level: Direct firmware commands via USB/CAN protocol
Command Format: ModuleCommand + ID + Parameters (e.g., C0RQid0101)

Maintenance Workflow Analysis

1. System Initialization (16:24:38-16:24:48)

# Equivalent PyLabRobot sequence:
device_enumeration()
firmware_version_check()
channel_configuration_verification()
system_status_query()

Hamilton Firmware Commands:

# Device identification and status
< C0RQid0101                    # Request status
> C0RQid0101rq0000              # Response: OK

< C0RIid0103                    # Read instrument info
> C0RIid0103er00/00si2017-01-31snXXXX  # Serial number and date

< C0RMid0105                    # Read module configuration
> C0RMid0105er00/00kb01kp02 C00000 X00000 P10000 P20000  # Module status

< P1RFid0107                    # Read P1 firmware version
> P1RFid0107rf4.0S j 2022-03-16 # Firmware version response

< P2RFid0109                    # Read P2 firmware version
> P2RFid0109rf4.0S j 2022-03-16 # Firmware version response

< C0QMid0104                    # Query system configuration
> C0QMid0104er00/00ka000001xt30xa30xw08000xl01xr00xm03500xx11400ys090xu3540xv3700yu0800kl360kc0yx0060ke00000000xn00xo00ym6065kr0km360

Key Commands:

C0RI - Read instrument info (serial number)
C0RM - Read module configuration
P1RF/P2RF - Read firmware versions
C0QM - Query system configuration

2. User Interaction Prompts (16:24:48-16:25:00)

# User guidance sequence:
prompt_remove_carriers()
prompt_clean_deck()
prompt_empty_tip_waste()
confirm_teaching_needles_installed()

Hamilton User Interaction Examples:

# Initial maintenance confirmation
2025-06-03 16:24:48> SYSTEM : Message Box - start; <Weekly maintenance - deck and tip waste>
Available button(s): <Yes>, <No>, Default button: <Yes>
Message: <Do you want to execute the weekly maintenance for deck and waste?>
2025-06-03 16:24:50> SYSTEM : Message Box - complete; <Yes (6)>

# Carrier removal prompt
2025-06-03 16:24:52> SYSTEM : Message Box - start; <Weekly maintenance - carriers>
Available button(s): <OK>, <Cancel>, Default button: <OK>
Message: <Remove all carriers from the deck, clean all carriers and press OK to continue.
(See Operator's Manual for use of cleaning, disinfecting and decontaminating fluids.)
Cancel will abort the weekly maintenance.>
2025-06-03 16:24:53> SYSTEM : Message Box - complete; <OK (1)>

# Deck cleaning prompt
2025-06-03 16:24:53> SYSTEM : Message Box - start; <Weekly maintenance - deck>
Available button(s): <OK>, Default button: <OK>
Message: <Open the front cover, clean the deck and press OK to continue.
(See Operator's Manual for use of cleaning, disinfecting and decontaminating fluids.)>
2025-06-03 16:24:54> SYSTEM : Message Box - complete; <OK (1)>

# Tip waste cleaning prompt
2025-06-03 16:24:55> SYSTEM : Message Box - start; <Weekly maintenance - tip waste>
Available button(s): <OK>, Default button: <OK>
Message: <Open the front cover, empty and clean the tip waste and press OK to continue.
(See Operator's Manual for use of cleaning, disinfecting and decontaminating fluids.)>
2025-06-03 16:24:56> SYSTEM : Message Box - complete; <OK (1)>

# Tightness test confirmation
2025-06-03 16:25:00> SYSTEM : Message Box - start; <Weekly Maintenance - Tightness Check 1000μl Channel>
Available button(s): <Yes>, <No>, Default button: <Yes>
Message: <Do you want to execute the 1000μl Channel tightness check?
Make sure that 2 1000μl teaching needles are installed.>
2025-06-03 16:25:01> SYSTEM : Message Box - complete; <Yes (6)>

User Actions Required:

Remove all carriers from deck
Clean deck surfaces
Empty and clean tip waste
Install 2x 1000μl teaching needles

3. Pressure Tightness Testing (16:25:01-16:26:31)

# Pressure testing sequence:
teaching_needle_pickup()
baseline_pressure_calibration()  # BP command
positive_pressure_test()         # DS + RP commands
negative_pressure_test()         # DS + RP commands
pressure_tolerance_validation()
teaching_needle_ejection()

Hamilton Firmware Commands:

# Teaching needle pickup and baseline calibration
< PXAAid0208dp20000              # Position channels for needle pickup
> PXAAid0208er00                 # Acknowledge

< PXBPid0212bp0                  # Baseline pressure calibration
> PXBPid0212er00                 # Calibration complete

# Positive pressure test
< P1DSid0213ds01250dt1           # Dosing steps: 1250 steps, dispense direction
> P1DSid0213er00                 # Movement complete
< P1RPid0214                     # Read pressure channel 1
> P1RPid0214rp+4082              # Pressure reading: +4082 Pascal

< P2DSid0215ds01250dt1           # Channel 2 dosing steps
> P2DSid0215er00                 # Movement complete
< P2RPid0216                     # Read pressure channel 2
> P2RPid0216rp+4057              # Pressure reading: +4057 Pascal

# Wait 20 seconds, then re-read for leak test
< P1RPid0219                     # Read pressure after delay
> P1RPid0219rp+4077              # Pressure after 20s: +4077 Pascal (5 Pa loss)
< P2RPid0220                     # Read pressure channel 2
> P2RPid0220rp+4052              # Pressure after 20s: +4052 Pascal (5 Pa loss)

# Negative pressure test
< P1DSid0228ds00800dt0           # Dosing steps: 800 steps, aspirate direction
> P1DSid0228er00                 # Movement complete
< P1RPid0229                     # Read pressure
> P1RPid0229rp-4370              # Negative pressure: -4370 Pascal

< P2DSid0230ds00800dt0           # Channel 2 aspirate
> P2DSid0230er00                 # Movement complete
< P2RPid0231                     # Read pressure
> P2RPid0231rp-4365              # Negative pressure: -4365 Pascal

# Leak test after 20 seconds
< P1RPid0234                     # Read pressure after delay
> P1RPid0234rp-4345              # Pressure after 20s: -4345 Pascal (25 Pa loss)
< P2RPid0235                     # Read pressure channel 2
> P2RPid0235rp-4340              # Pressure after 20s: -4340 Pascal (25 Pa loss)

Key Parameters:

Target Pressures: ±4000 Pascal range
Tolerance: <1500 Pascal pressure loss over 20 seconds
Commands:
- BP - Baseline pressure calibration
- DS - Dosing drive steps (dt0=aspirate, dt1=dispense)
- RP - Read pressure values

4. cLLD Testing (16:26:37-16:27:01)

# Capacitive liquid level detection test:
teaching_needle_pickup()
clld_initialization()     # AL command
measurement_setup()       # JM command
level_detection_test()    # ZL + RN + KZ commands
clld_validation()
teaching_needle_ejection()

Hamilton Firmware Commands:

# cLLD initialization and setup
< PXALid0245                     # Liquid level detection initialization
> PXALid0245er00                 # Initialization complete

< PXJMid0246                     # Measurement mode setup
> PXJMid0246er00/00              # Setup complete

# Level detection test sequence
< PXZLid0247                     # Z-level detection command
> PXZLid0247er70                 # Error 70: Expected for air detection

< PXRNid0248                     # Needle contact detection
> PXRNid0248rn0                  # Contact status: 0 (no contact)

< PXZLid0249                     # Retry Z-level detection
> PXZLid0249er00                 # Success: Level detected

< PXRNid0250                     # Needle contact verification
> PXRNid0250rn1                  # Contact status: 1 (contact detected)

< PXKZid0251                     # Capacitance measurement
> PXKZid0251er00/00              # Measurement complete

# Second channel cLLD test
< PXJMid0252                     # Channel 2 measurement setup
> PXJMid0252er00/00              # Setup complete

< PXZLid0253                     # Z-level detection
> PXZLid0253er70                 # Expected air detection error

< PXRNid0254                     # Contact detection
> PXRNid0254rn0                  # No contact initially

< PXZLid0255                     # Retry detection
> PXZLid0255er00                 # Level found

< PXRNid0256                     # Final contact check
> PXRNid0256rn1                  # Contact confirmed

< PXKZid0257                     # Final capacitance measurement
> PXKZid0257er00/00              # Measurement successful

Key Commands:

AL - Liquid level detection initialization
JM - Measurement mode setup
ZL - Z-level detection with error handling
RN - Needle contact detection
KZ - Capacitance measurement

5. System Cleanup (16:27:01-16:27:24)

# Cleanup sequence:
return_to_safe_positions()
channel_spreading()
system_shutdown()
maintenance_completion_log()

Hamilton Cleanup Commands:

# System position reset
< C0RUid0117                     # Return to safe positions
> C0RUid0117er00/00ru00950 08000 30000 30000  # Position confirmation

# Channel cleanup and spreading
2025-06-03 16:27:22> Microlab STARlet : Clean up instrument - progress; Move up 1000ul channels
2025-06-03 16:27:22> Microlab STARlet : Clean up instrument - progress; Spreading channels

# Final system status
< C0AV                           # System availability check
> C0AVer00/00                    # System ready

# Maintenance completion
2025-06-03 16:27:04> SYSTEM : Message Box - start; <Weekly maintenance - successful>
Available button(s): <OK>, Default button: <OK>
Message: <Weekly maintenance execute successfully completed>
2025-06-03 16:27:20> SYSTEM : Message Box - complete; <OK (1)>

6. Teaching Needle Management

# Teaching needle pickup sequence
2025-06-03 16:25:01> Microlab STARlet : 1000ul Channel Tip Pick Up (Single Step) - start;
2025-06-03 16:25:21> Microlab STARlet : 1000ul Channel Tip Pick Up (Single Step) - complete;
> channel 1: teachingNeedleBlock, 1 > channel 2: teachingNeedleBlock, 2

# Teaching needle ejection sequence
2025-06-03 16:25:45> Microlab STARlet : 1000ul Channel Tip Eject (Single Step) - start;
2025-06-03 16:25:52> Microlab STARlet : 1000ul Channel Tip Eject (Single Step) - complete;
> channel 1: teachingNeedleBlock, 1 > channel 2: teachingNeedleBlock, 2

Critical Implementation Requirements

1. Command Translation Table

Hamilton Command	Function	Example	PyLabRobot Equivalent
`C0RI`	Read instrument info	`C0RIid0103` → `er00/00si2017-01-31snXXXX`	`device.get_serial_number()`
`P1RP`/`P2RP`	Read pressure	`P1RPid0214` → `rp+4082`	`channel.read_pressure()`
`P1DS`/`P2DS`	Dosing steps	`P1DSid0213ds01250dt1` → `er00`	`channel.move_plunger(steps=1250, direction='dispense')`
`PXBPbp0`	Baseline pressure	`PXBPid0212bp0` → `er00`	`channel.calibrate_pressure_baseline()`
`PXAA`	Initialize position	`PXAAid0208dp20000` → `er00`	`channel.initialize(position=20000)`
`PXAL`	cLLD initialization	`PXALid0245` → `er00`	`channel.initialize_liquid_detection()`
`PXJM`	Measurement mode	`PXJMid0246` → `er00/00`	`channel.set_measurement_mode()`
`PXZL`	Z-level detection	`PXZLid0247` → `er70`	`channel.detect_level()`
`PXRN`	Needle contact	`PXRNid0248` → `rn0`	`channel.check_needle_contact()`
`PXKZ`	Capacitance measure	`PXKZid0251` → `er00/00`	`channel.measure_capacitance()`

2. Pressure Testing Specifications

Positive Pressure: Target ~4000 Pa, tolerance ±200 Pa
Negative Pressure: Target ~-4000 Pa, tolerance ±200 Pa
Leak Test: <1500 Pa loss over 20 seconds
Stabilization: 2-3 second delays between measurements

3. Error Handling Requirements

Pressure range validation (max ±10000 Pa)
Teaching needle presence verification
Timeout handling for pressure stabilization
User abort capability with safe recovery

Hamilton Error Handling Examples:

# Normal successful response
< P1RPid0214
> P1RPid0214rp+4082              # Success: pressure value returned

# Error response format
< PXZLid0247                     # Z-level detection
> PXZLid0247er70                 # Error 70: Expected for air detection

# Communication error
< C0RQid0101
> C0RQid0101er99/99              # Error 99: Communication failure

# Timeout handling
< P1DSid0213ds01250dt1
> [no response after timeout]    # Requires retry or abort

# USB connection status
! 15:30:56.836 8AF#8000#00: USB Info: CLOSE USB_READ_THREAD
! 15:31:13.392 8AF#8000#00: USB Info: CLOSE USB_READ_THREAD

Error Code Meanings:

er00/00 - Success, no errors
er70 - Expected cLLD error (air detection)
er99/99 - Communication failure
No response - Timeout, requires recovery

4. Timing Requirements

Pressure Stabilization: 2-3 seconds between measurements
Leak Testing: 20-second monitoring periods
User Timeouts: Configurable prompt timeouts
System Delays: Hardware-specific settling times

PyLabRobot Implementation Strategy

Phase 1: Core Infrastructure

Hamilton firmware command abstraction layer
Device enumeration and configuration system
Error handling and recovery procedures
Basic communication protocol implementation

Phase 2: Maintenance Procedures

User interaction and prompting system
Teaching needle management
Pressure testing implementation
cLLD testing procedures

Phase 3: Validation and Testing

Test framework development
Tolerance validation system
Comprehensive logging and tracing
Performance verification against Hamilton reference

Implementation Examples

Hamilton Command Interface

class HamiltonSTARlet:
    def __init__(self, device_id: str = "XXXX"):
        self.device_id = device_id
        self.channels = {1: HamiltonChannel(1), 2: HamiltonChannel(2)}

    def send_command(self, command: str, timeout: float = 5.0) -> str:
        """Send Hamilton firmware command and return response"""
        # Implementation would interface with PyLabRobot backend
        response = self._send_raw_command(command, timeout)
        return self._parse_response(response)

    def get_system_info(self) -> dict:
        """Get system configuration like Hamilton C0RI command"""
        response = self.send_command("C0RIid0001")
        # Parse: er00/00si2017-01-31snXXXX
        return self._parse_system_info(response)

class HamiltonChannel:
    def __init__(self, channel_id: int):
        self.channel_id = channel_id

    def read_pressure(self) -> int:
        """Read pressure like Hamilton P1RP command"""
        cmd = f"P{self.channel_id}RPid{self._get_next_id()}"
        response = self.send_command(cmd)
        # Parse: rp+4082 -> return 4082
        return self._parse_pressure(response)

    def move_plunger(self, steps: int, direction: str) -> bool:
        """Move plunger like Hamilton P1DS command"""
        dt_value = "1" if direction == "dispense" else "0"
        cmd = f"P{self.channel_id}DSid{self._get_next_id()}ds{steps:05d}dt{dt_value}"
        response = self.send_command(cmd)
        return response.startswith("er00")

Pressure Testing Implementation

class PressureTightnessTest:
    def __init__(self, device: HamiltonSTARlet):
        self.device = device
        self.tolerance_pa = 1500  # Max 1500 Pa loss allowed

    async def run_tightness_test(self) -> dict:
        """Execute complete pressure tightness test"""
        results = {}

        # Step 1: Teaching needle pickup
        await self._pickup_teaching_needles()

        # Step 2: Baseline calibration
        await self._calibrate_baseline_pressure()

        try:
            # Step 3: Positive pressure test
            pos_results = await self._test_positive_pressure()
            results.update(pos_results)

            # Step 4: Negative pressure test
            neg_results = await self._test_negative_pressure()
            results.update(neg_results)

        finally:
            # Step 5: Teaching needle ejection
            await self._eject_teaching_needles()

        return self._validate_results(results)

    async def _test_positive_pressure(self) -> dict:
        """Test positive pressure like Hamilton sequence"""
        results = {}

        for channel_id in [1, 2]:
            channel = self.device.channels[channel_id]

            # Build pressure: P1DSid0213ds01250dt1
            await channel.move_plunger(steps=1250, direction="dispense")

            # Read initial pressure: P1RPid0214 -> rp+4082
            initial_pressure = await channel.read_pressure()

            # Wait 20 seconds for stabilization
            await asyncio.sleep(20.0)

            # Read final pressure: P1RPid0219 -> rp+4077
            final_pressure = await channel.read_pressure()

            # Calculate pressure loss
            pressure_loss = abs(initial_pressure - final_pressure)

            results[f"channel_{channel_id}_positive"] = {
                "initial_pressure": initial_pressure,
                "final_pressure": final_pressure,
                "pressure_loss": pressure_loss,
                "pass": pressure_loss < self.tolerance_pa
            }

        return results

User Interaction System

class MaintenanceUserInterface:
    def __init__(self):
        self.logger = logging.getLogger(__name__)

    async def prompt_maintenance_start(self) -> bool:
        """Replicate Hamilton weekly maintenance start prompt"""
        message = (
            "Weekly maintenance - deck and tip waste\n\n"
            "Do you want to execute the weekly maintenance for deck and waste?"
        )
        return await self._show_yes_no_dialog(
            title="Weekly Maintenance",
            message=message,
            default="Yes"
        )

    async def prompt_clean_deck(self) -> bool:
        """Replicate Hamilton deck cleaning prompt"""
        message = (
            "Open the front cover, clean the deck and press OK to continue.\n"
            "(See Operator's Manual for use of cleaning, disinfecting and "
            "decontaminating fluids.)"
        )
        return await self._show_ok_dialog(
            title="Weekly maintenance - deck",
            message=message
        )

    async def prompt_teaching_needles(self) -> bool:
        """Confirm teaching needles are installed"""
        message = (
            "Do you want to execute the 1000μl Channel tightness check?\n\n"
            "Make sure that 2 1000μl teaching needles are installed."
        )
        return await self._show_yes_no_dialog(
            title="Weekly Maintenance - Tightness Check 1000μl Channel",
            message=message,
            default="Yes"
        )

Key Challenges and Considerations

1. Hardware Abstraction

Direct firmware command translation to PyLabRobot APIs
Pressure sensor calibration and reading
Teaching needle handling mechanisms

2. Timing Sensitivity

Pressure stabilization requirements
Hardware response delays
Real-time user interaction handling

3. Safety and Validation

Pressure range limits and safety checks
Teaching needle presence verification
System state validation and recovery

4. User Experience

Clear maintenance instructions and prompts
Progress indication during long procedures
Error reporting and troubleshooting guidance

Success Metrics

Functional Equivalence: All Hamilton maintenance procedures replicated
Performance: Timing within ±10% of Hamilton reference
Reliability: >99% successful completion rate
Safety: Zero hardware damage incidents during testing
Usability: Clear user guidance and error reporting

Next Steps

Complete command mapping documentation
Implement basic device communication layer
Develop pressure testing procedures
Create comprehensive test framework
Validate against Hamilton reference behavior

This analysis provides the foundation for implementing Hamilton STARlet weekly maintenance procedures in PyLabRobot, ensuring functional equivalence while maintaining safety and reliability standards.

rickwierenga · July 22, 2025, 6:55pm

@JDesRo this is fantastic!

This high level overview of the steps it does is super useful. Now we actually know what a daily maintenance script is. I had no idea really I am very optimistic we can have this in PLR soon. I think as a qc script.

implementation wise, my intuition would be to write a macro->PLR translator (even if it needs a manual polish) to ensure accuracy and make it easy to port other scripts. LLMs sometimes lose track/forget parts when translating code.

The most challenging part of this would be to find the corresponding PLR methods for sending firmware commands (it is possible to just sent them straight up, but then we lose the validation we already have in PLR and makes the code less readable).
- We need a firmware command → PLR method name lookup table. For that LLMs are perfect

is the maintenance script an .hsl or .med file or macro? or something else?

JDesRo · July 22, 2025, 7:08pm

They are HSL/STP/LAY files.

As I mentioned I am coding a few projects directly in the Macro/Direct command language. I’m not doing any traditional liquid handling so things like liquid classes and deck layouts aren’t important.

I’ve also been able to successfully hijack the CAN BUS and send direct commands for the creation of some external testing devices.

They do. They must be watched and maintained as a tool like anything else in this industry.

Glad this helps!

rickwierenga · July 22, 2025, 7:42pm
